CXRacing LS1/LSx Engine and T56 Manual Transmission Mount Kit +Driveshaft for 89-94 Nissan 240SX S13,Fully Adjustable

Kit Includes Engine Mount, Transmission Mount, Headers, Oil Pan with Oil Pickup and Dipstick, and Steel Driveshaft

This is CXRacing's Newest Products for Nissan 240SX S13 Chassis. All Parts are Developed from Ground Up, Designed and Built Specially for the S Chassis with LS1 Motor Swap. It is one of the Best Complete Kits Available with the Most Competitive Cost. Kit is Bolt on Fit and Easy Install.

Part (s) Being Sold Has One or More Registered Patent(s)

-Chassis: 1989-1994 Nissan 240SX S13
-Motor: GM LS1/LSx
-Transmission: T56

This Kit Comes with Many Innovative Designs:

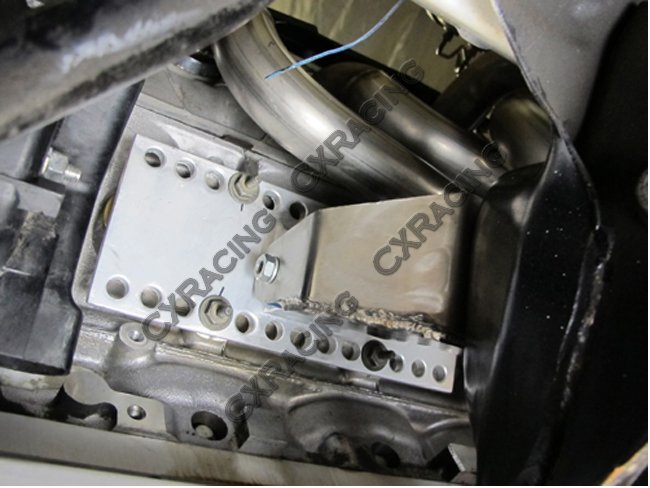

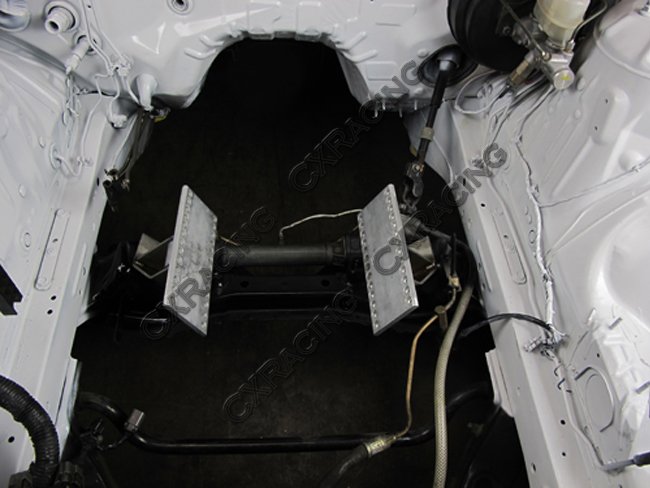

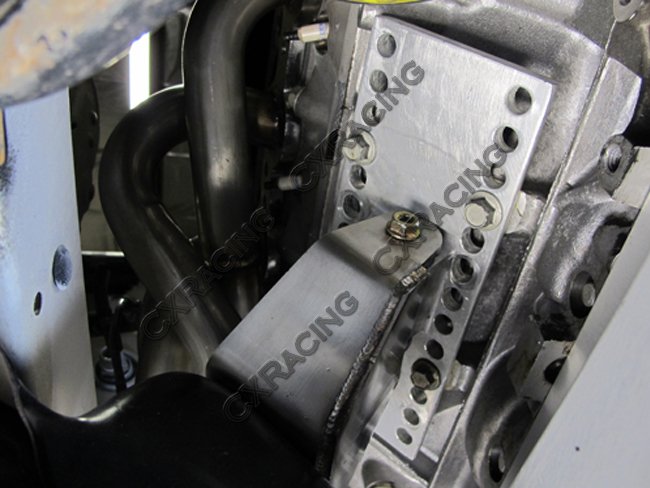

-Aluminum Motor Mount Plate is Extruded Billet Aluminum, Excellent Strength. Each Mount Holes is 1/2" Apart, Can Move the Motor Forward and Backward by 1/2" Increments.

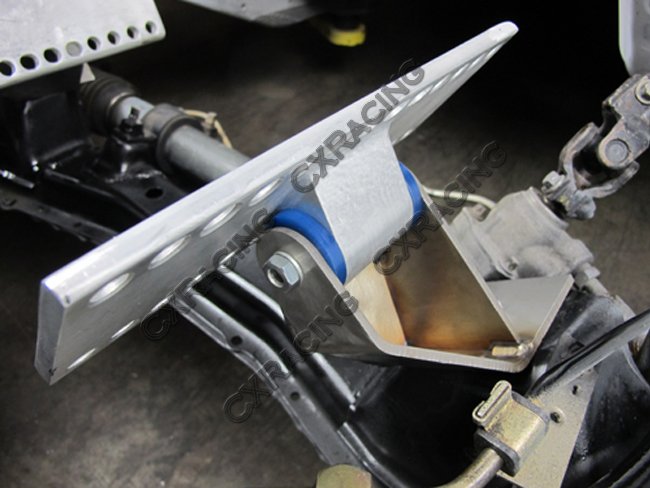

-Aluminum Mount Plate Center Mount is Polyurethane Bushing. It also Has Offset in Reference of the Center Line, Therefore Can Adjust the Motor Height by Flipping the Mount Plate.

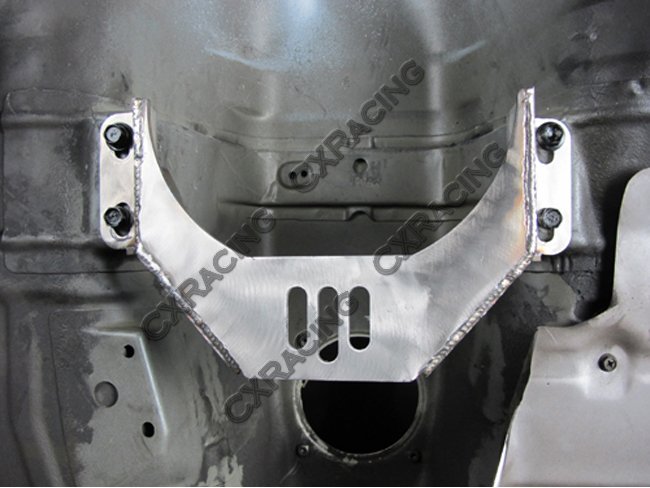

-Thick 1/4" 304 Stainless Steel Mounts with Brace Offer Strong Support for the Motor and Transmission.
-Slotted Hole Patterns also Offer Adjustability for the Motor and Transmission.
-3" OD Steel Driveshaft

Product Info and Spec:

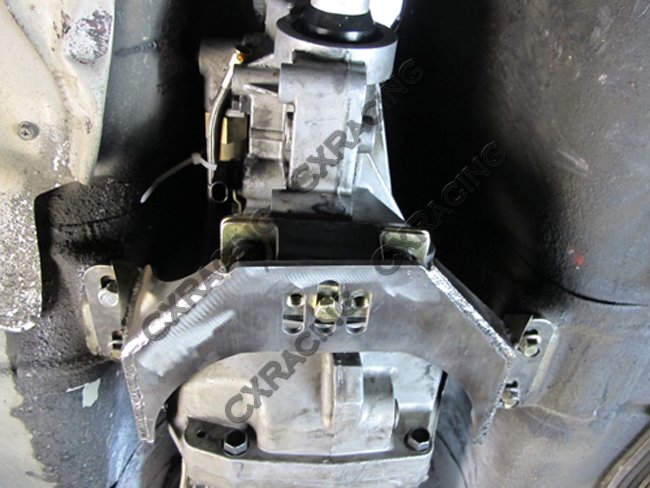

Motor / Transmission Mounts:
-Heavy Duty 7 Gauge (0.18") Thick Stainless Steel Panel, with Brace Offers Strong Support
-Adjustable Slotted Bolt Holes
-Polyurethane Bushing Mounts
-Patent Pending Design of Motor Mount

-3" Steel Drive
-Computer Balance Individual
-Made in USA

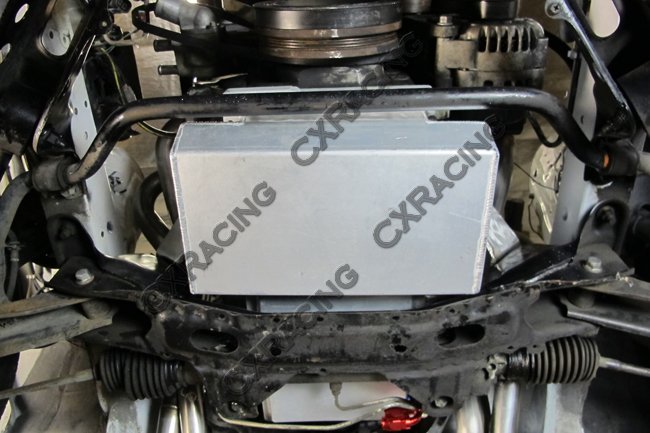

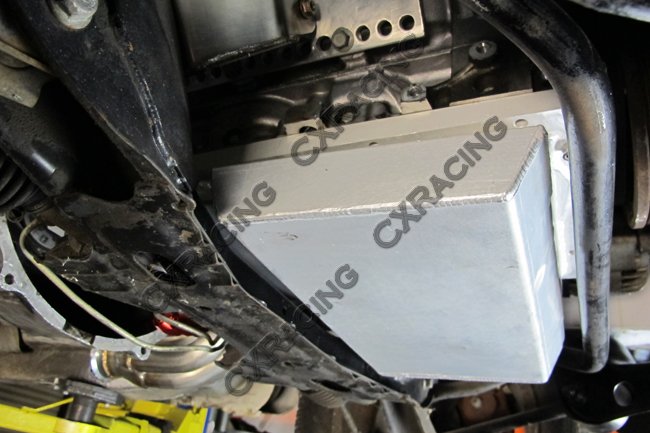

Oil Pan:

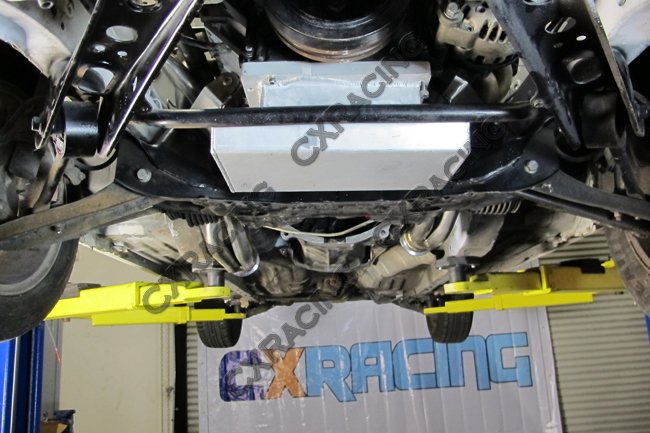

-Perfect Fitment, Keeps Crossmember and Swaybar.
-Built-in with Baffles and Trap Doors for High Performance and Race Applications
-1/2" Thick Aluminum CNC Cut Flange
-Two AN8 Fitting for External Oil Filter
-Holds 6 QT of Oil (5.5 QT for Oil Pan, 1/2 for Remote Oil Filter)

Dipstick Setup:
-Use AN Fitting and Braided Line.
-Use Factory LS Dipstick (Not Included)

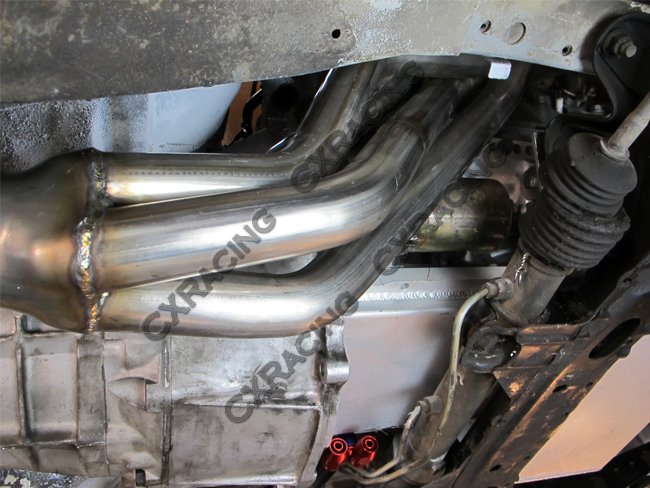

-Equal Length Runners for Best Performance Gain
-Long Tube Design for More Power and Torque
-1.65" OD Stainless Steel Mandrel Bent Tube Runner
-3" Vband Ends for Easy Adaptation of the Rest Exhaust System

-This Kit is for S13 ONLY. Does Not Fit S14 (S14 Has Longer Driveline). We Do Offer Different Kit for S14, Please Check Our Other Website Items.
-Use GTO Shifter Assembly (Not Included)
-Compare to Factory Dipstick Tube (not included), Pls See the Product Photo No.7

-Engine +Transmission Mounts + Driveshaft + Dipstick Kit

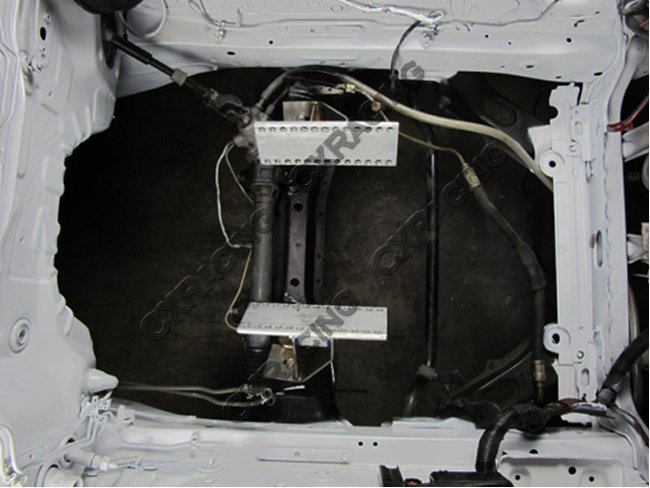

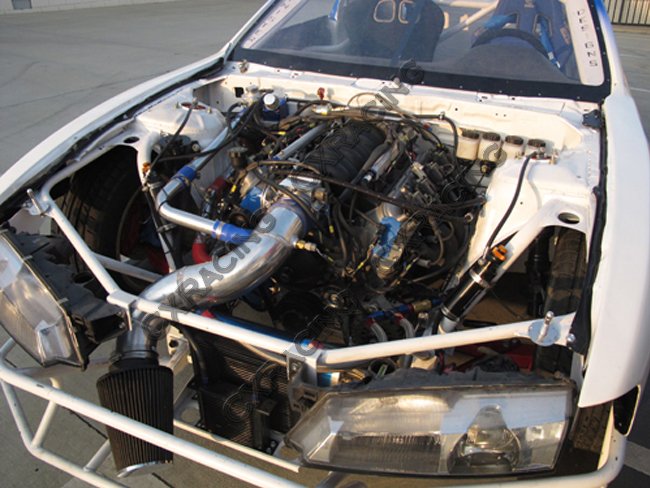

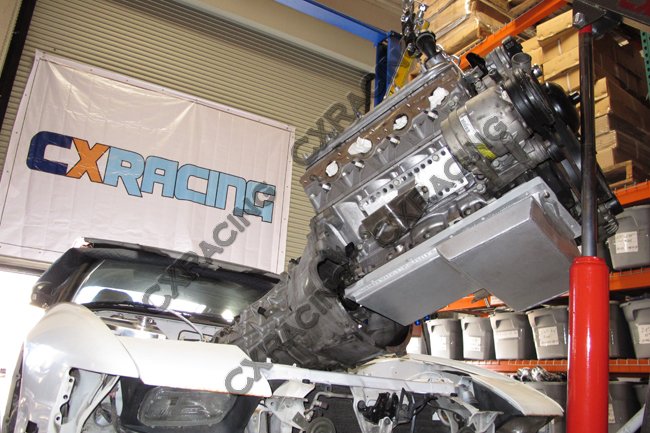

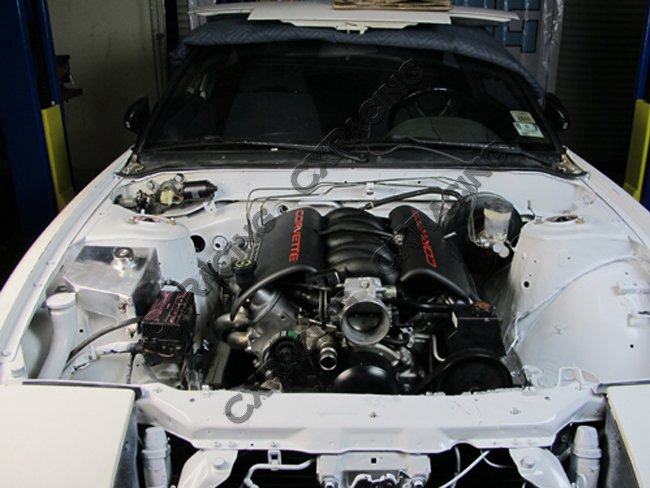

Below Are Installation Pictures:
