CXRacing Intercooler + Radiator Kit for 2005-2013 Chevrolet Corvette C6
Comes with Intercooler + Piping Kit + Radiator + Shroud+ Fans + Mounting Brackets

Turbo Kit and Other Parts Shown on Installed Pictures Are NOT Included.
These Are The Intercooler and Radiator Kits From the Corvette C6 Turbo Kit We Offer. You Can Use Them As the Solution for Your Front End Intercooler and Radiator Setup. Piping Connects to Turbo Located In the Center Front, with 3.5" Vband Turbo Outlet.
This Kit Replaces Stock Radiator, Eliminates A/C Condenser, Adds Big Front Mount Intercooler, No Cut, Bolt On Fitment. Easy Install and Supports Big Power.

-Bolt On Fitment, Comes with Brackets to Mount Intercooler, Radiator
-Big 4" Core Intercooler
-3" Intercooler Piping Kit
-Comes with New Radiator, Shroud and Fans, Replaces Restrictive Stock Radiator

1. This Is A Proprietary Design By CXRacing, Part of the Complete Turbo Kit for C6. If You Uses Different Manifold/Turbo, Fitment Is NOT Guaranteed. Piping Kit Might Not Fit and Modification Is Required. It Might Also Hit Other Parts Of Your Turbo Setup.
2. This Kit Needs to Remove Stock Radiator, Replaces It with Our New Radiator.
3. Can't Keep A/C (Don't Have Room For A/C Condenser.
4. For Automatic Transmission, Need to Add An External Oil Cooler, NOT Included. For Manual Transmission, It Is Highly Recommended to Upgrade the Oil Cooler As Well.

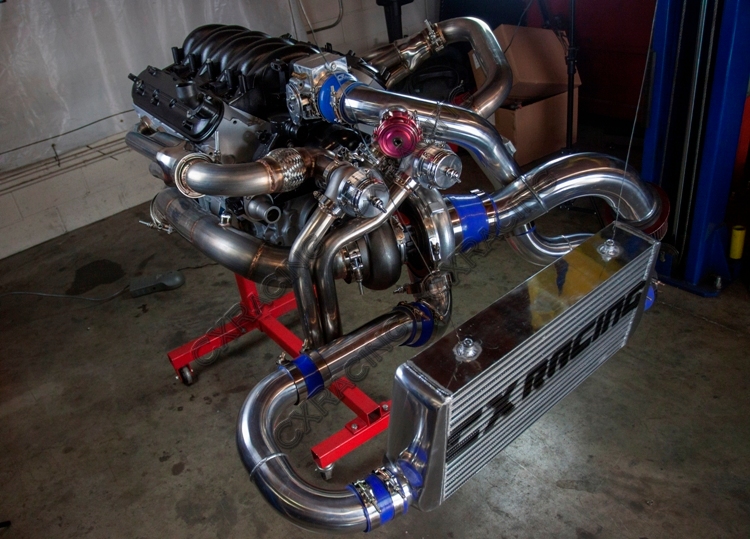

5. There Is NO Installation Guide Provided, However, We Show Many Installed Pictures On Car and On Engine Stand.

Chassis: 2005-2013 Chevrolet Corvette C6
Engine: LS3

Product Being Sold:
Intercooler + Piping Kit + Hoses and Clamps + Radiator + Shroud+ Fans + Mounting Brackets

Product Info and Spec:
Intercooler Kit:
Bar & Plate Construction
Core Size: 24"x12"x4"
Overall Size: 31"x12"x4"
3" Inlet & Outlet
Mandrel Bent Aluminum Piping Kit
3" Mandrel Bent Pipe
Intercooler Comes with Aluminum Brackets
50mm BOV, Silicon Hose and Clamps

Radiator + Shroud + Fans:
Overall Size:26"x20"x2"
Core Size: 25"x14"x2"
1.25" Inlet & Outlet:1.25"
Rows: 2
Pressures Released Cap: 1.1 Bar or 16 Lbs
Aluminum Shroud
Two High Performance Slim Electric 12" Fans

-Off Road or Track Use ONLY, NOT for Street Use.
-Due to The Complexity of Swapping a Motor to Different Chassis, Please Make Sure that You Understand the Application Stated Here are the Right Parts for Your Project.
-Parts Being Sold are The Kit Being Advertised ONLY. Other Parts Shown On Pictures are For Demo Only (of Our Complete Swap Kit).

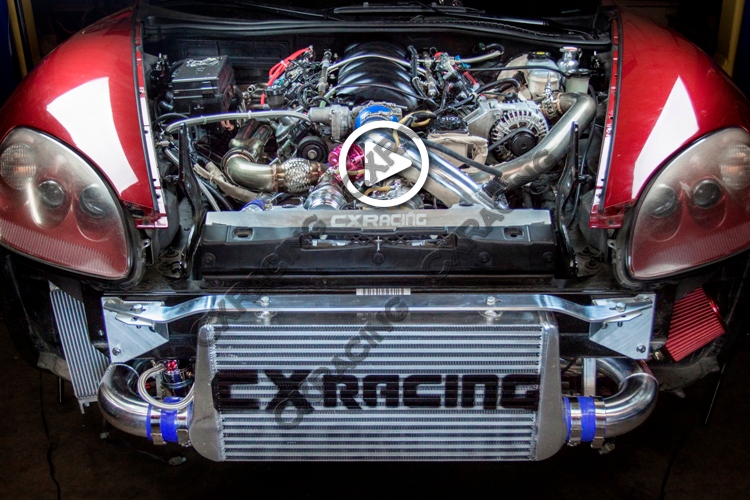

Click Below Picture to See Video:

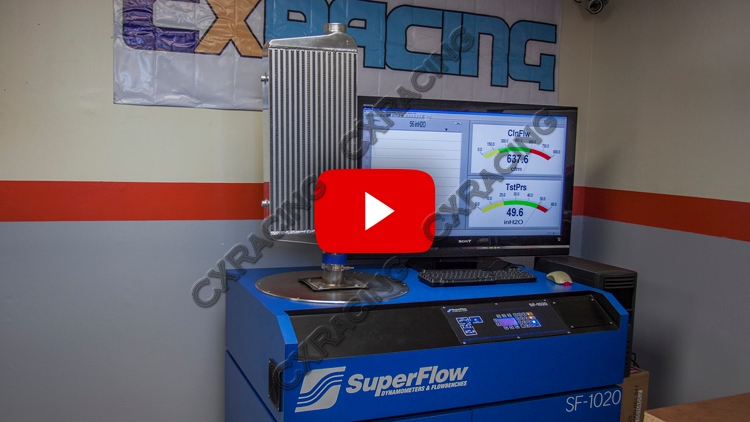

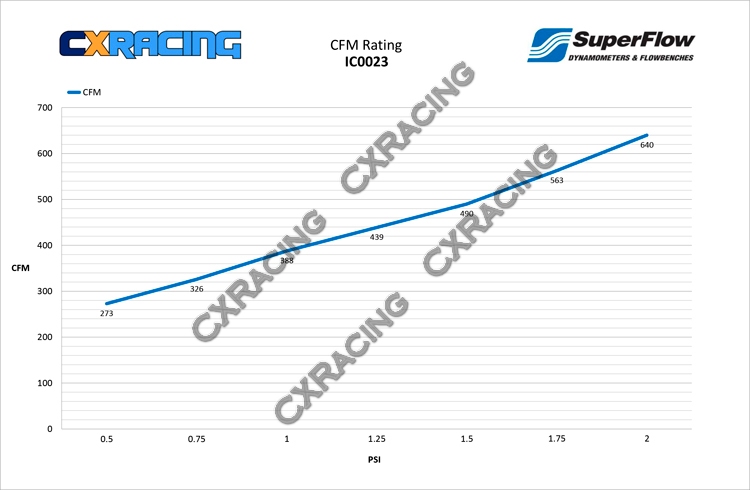

Click Below Picture to See Flowbench Test:

-Especially Designed, Made for the Application Stated
-Fully Tested, Simple Easy Installation
-Offers Excellent Performance Gains

Items Included:
Intercooler + Brackets + 50mm Blow Off Valve
Aluminum Piping Kit with Silicon Hose and Clamps
Radiator + Shroud + Fans
Intercooler and Radiator Mounting Brackets
Note: Turbo Kit Is NOT Included.

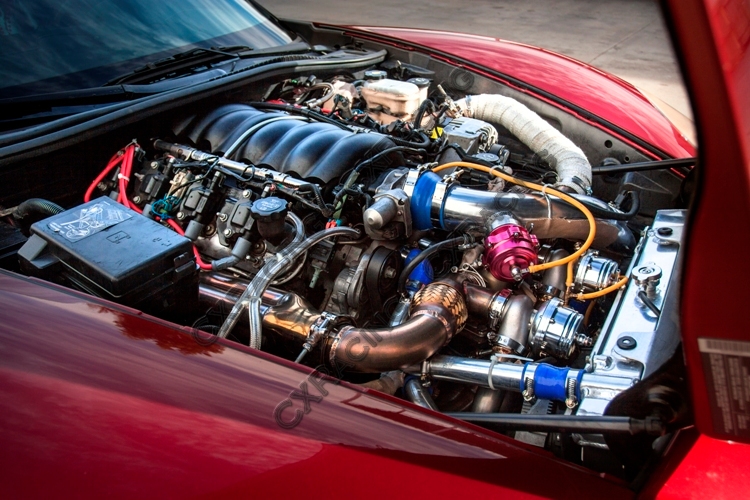

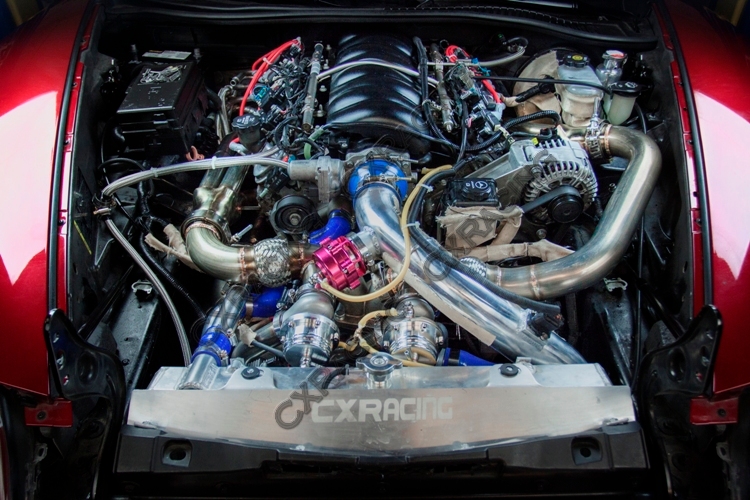

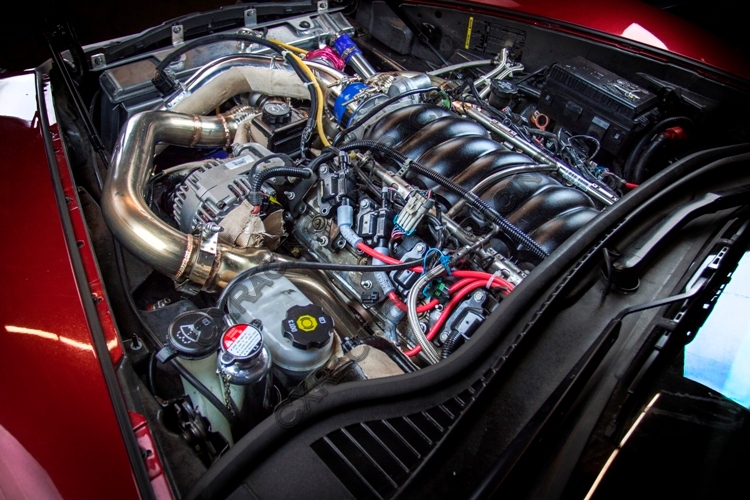

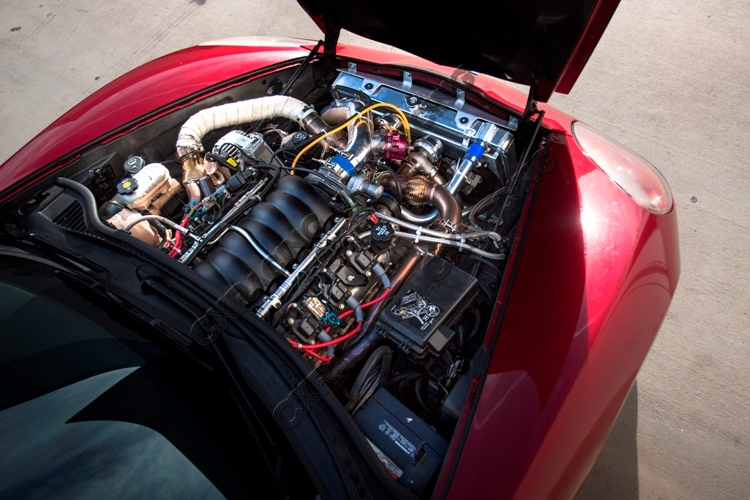

Below Are Installation Pictures:

Below Pictures Show Intercooler and Radiator Mounting Brackets  (Do NOT Flip It, Otherwise It Does NOT Work)

Below Picture Shows Where The Bumper Need to Be Trimmed
