CXRacing LS1 Engine Aluminum Oil Pan Kit

Front Sump Oil Pan + Dipstick

Fits 89-98 Nissan 240SX S13 S14

This is CXRacing's Newest Products for Nissan 240SX S13 Chassis. All Parts are Developed from Ground Up, Designed and Built Specially for the S Chassis with LS1 Motor Swap. It is one of the Best Complete Kits Available with the Most Competitive Cost. Kit is Bolt on Fit and Easy Install.

-Chassis: 1989-1998 Nissan 240SX S13 S14
-Motor: GM LS1/LSx

Product Info and Spec:

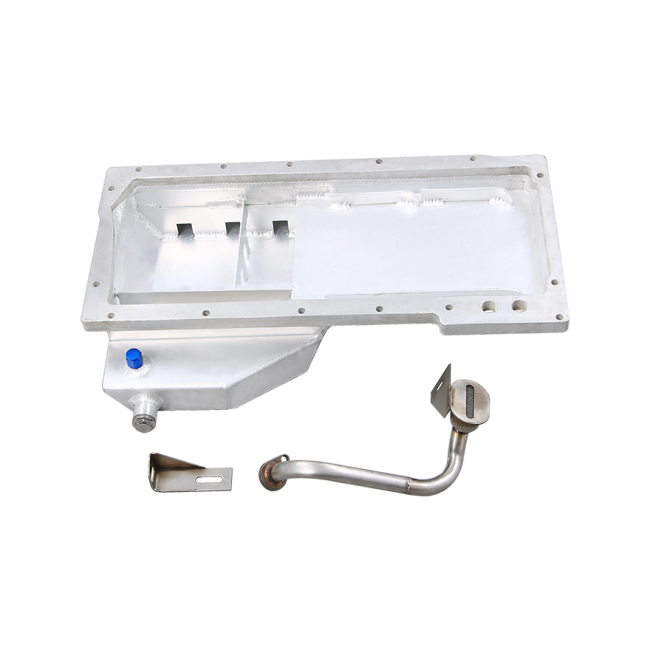

Oil Pan:
-Perfect Fitment, Keeps Crossmember and Swaybar.
-Built-in with Baffles and Trap Doors for High Performance and Race Applications
-1/2" Thick Aluminum CNC Cut Flange
-Two AN8 Fitting for External Oil Filter
-Holds 6 QT of Oil (5.5 QT for Oil Pan, 1/2 for Remote Oil Filter)

Dipstick Setup:
-Use AN Fitting and Braided Line.
-Use Factory LS Dipstick (Not Included)

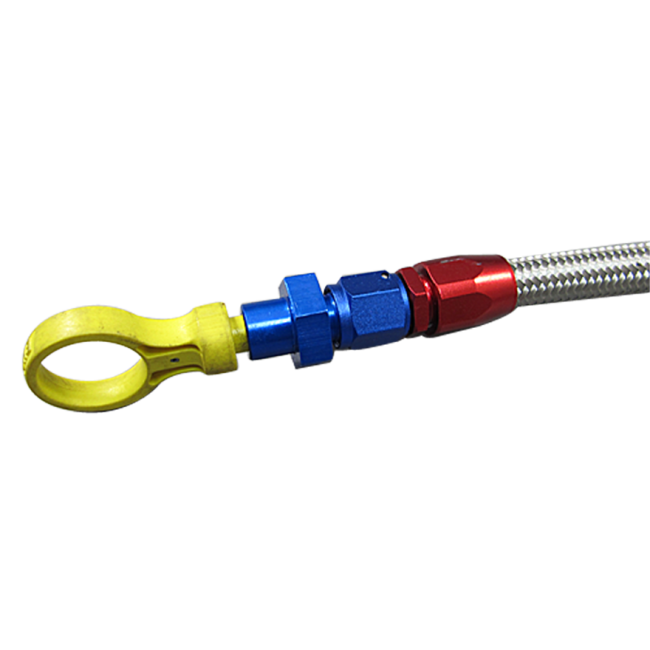

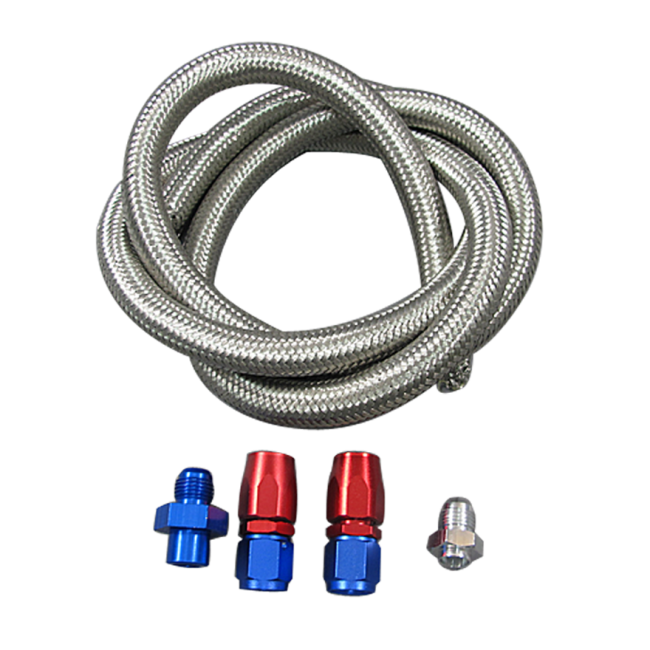

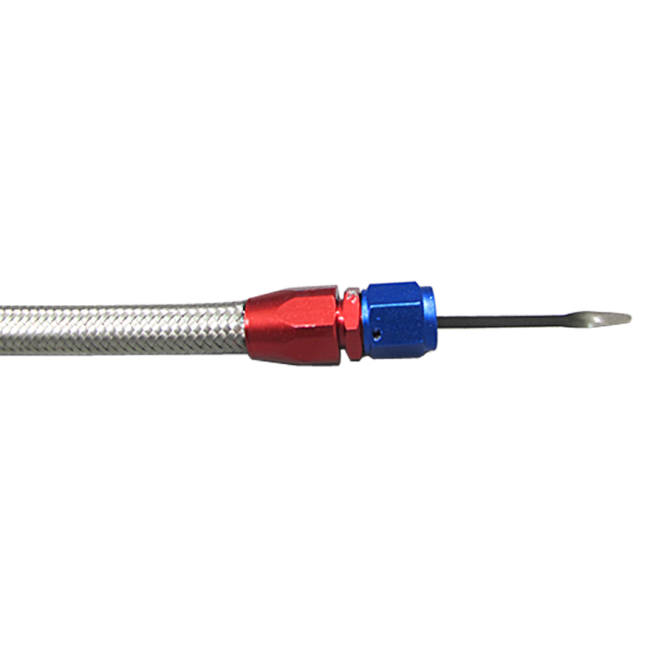

**Note: Dipstick Setup Uses Factory Dipstick (not included). The kit comes with Braided Oil Line and Fitting that Fits Factory Dipstick. It Uses AN6 Fitting to Connect to Oil Pan. See Pictures. You will need to make the line yourself because the length is depend on applications. All you need to do is to cut the braided line to the length you need and connect it with AN fittings.

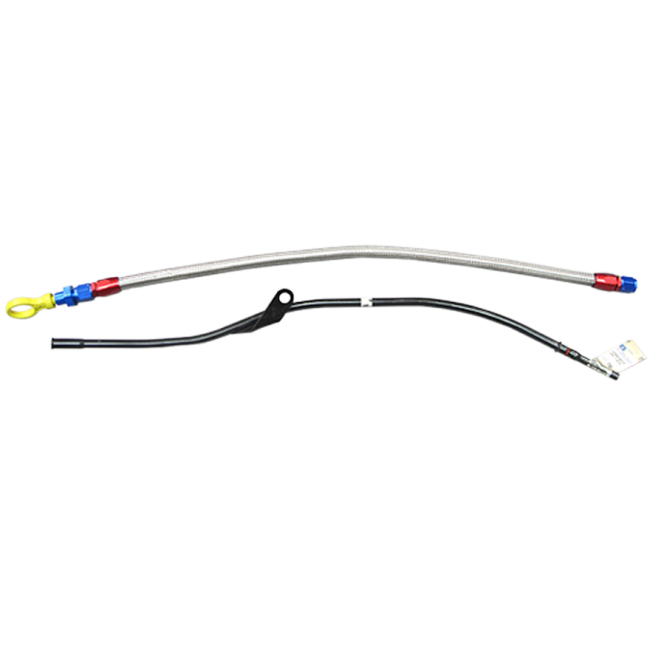

-Compare to Factory Dipstick Tube (not included), Pls See the Product Photo No.6

-Oil Pan
-Oil Pickup
-Dipstick Setup
-Transmission Dust Cover

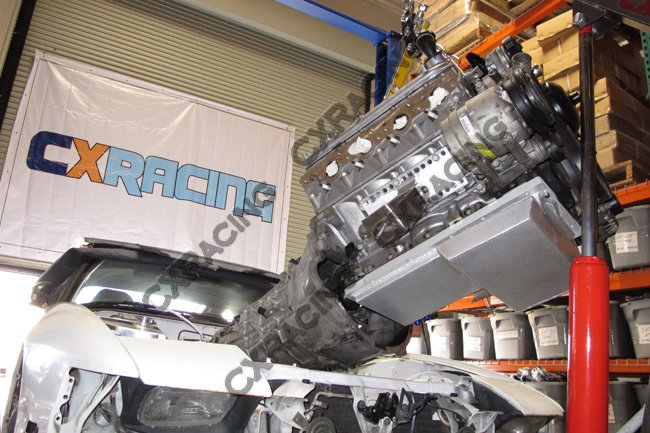

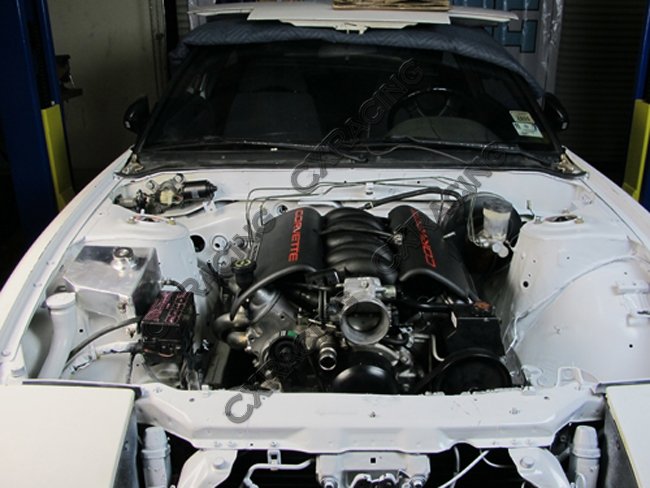

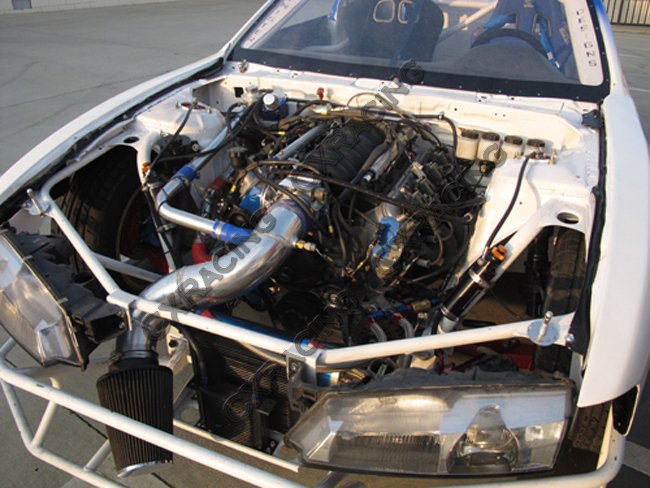

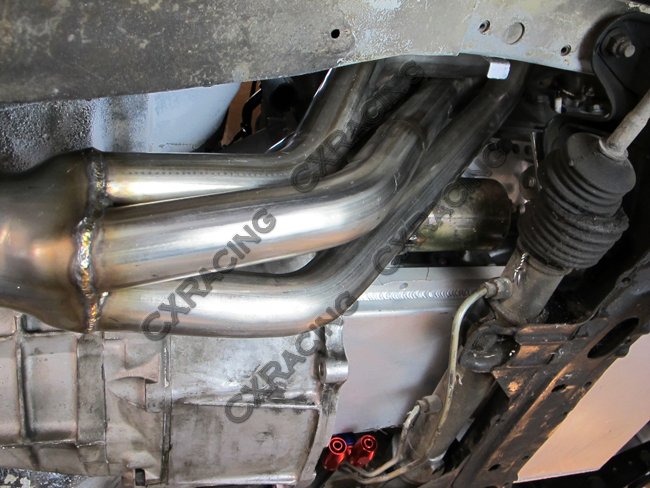

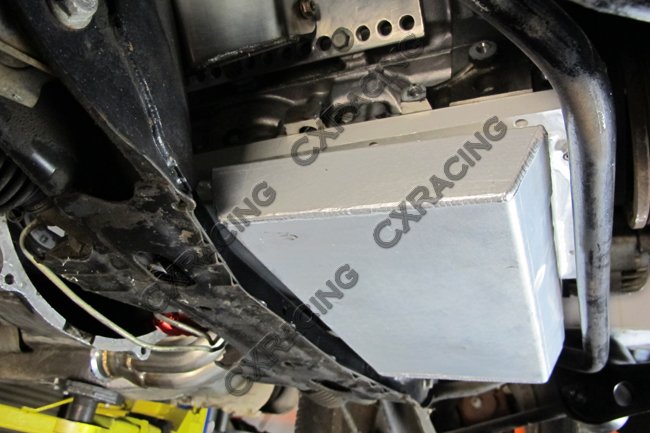

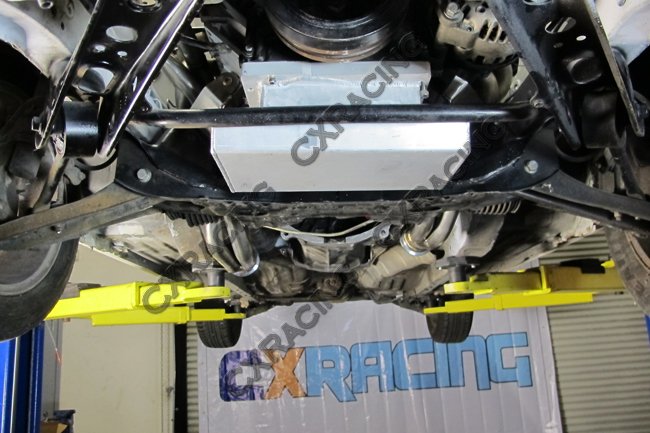

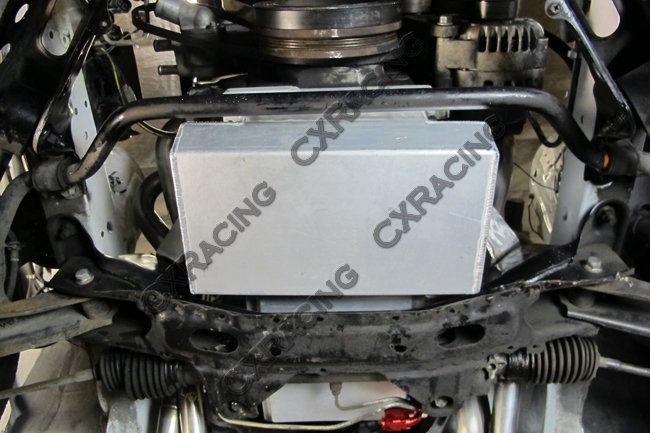

Below Are Installation Pictures:
