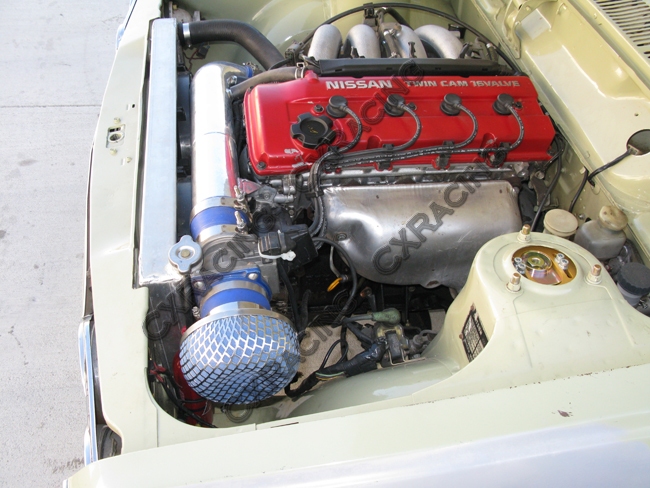

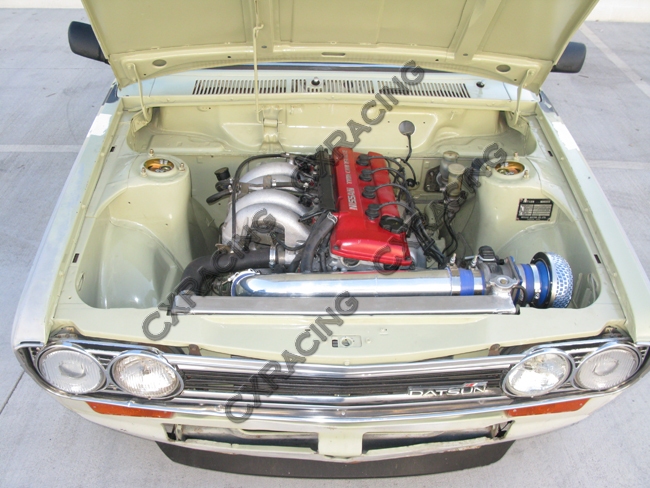

CXRACING Aluminum Radiator For Datsun 510 with SR20DET Engine Swap with Manual Transmission

Specification:

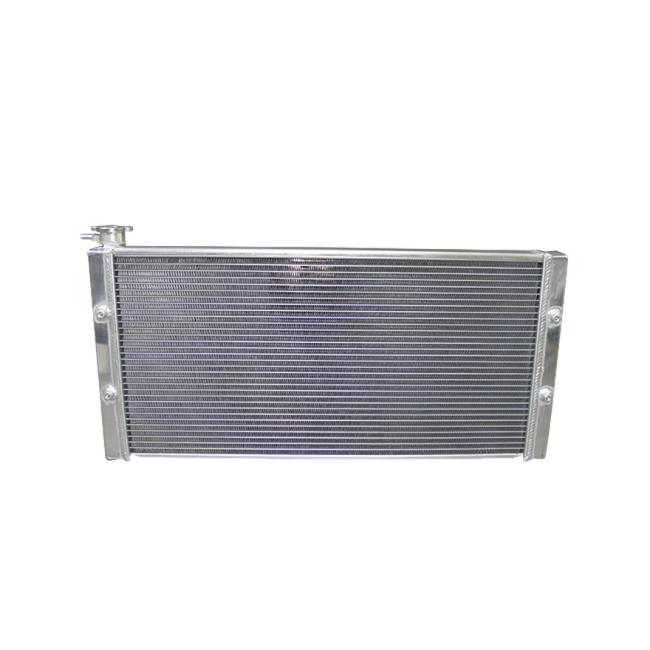

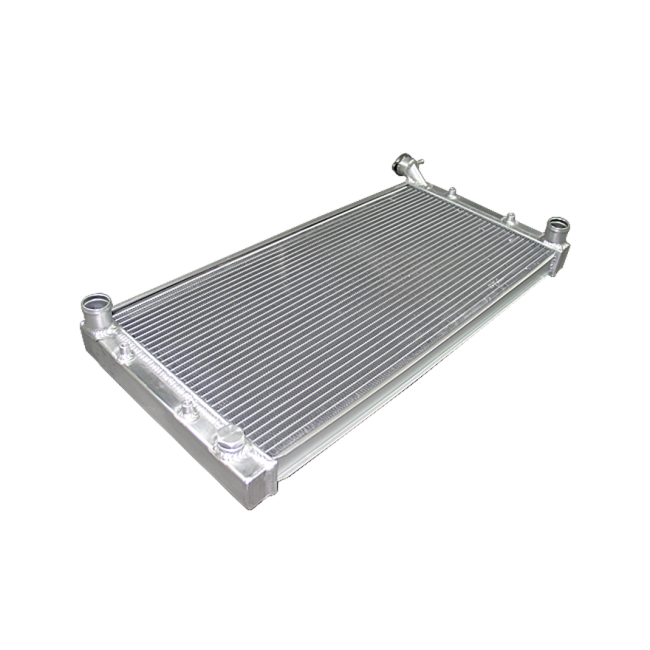

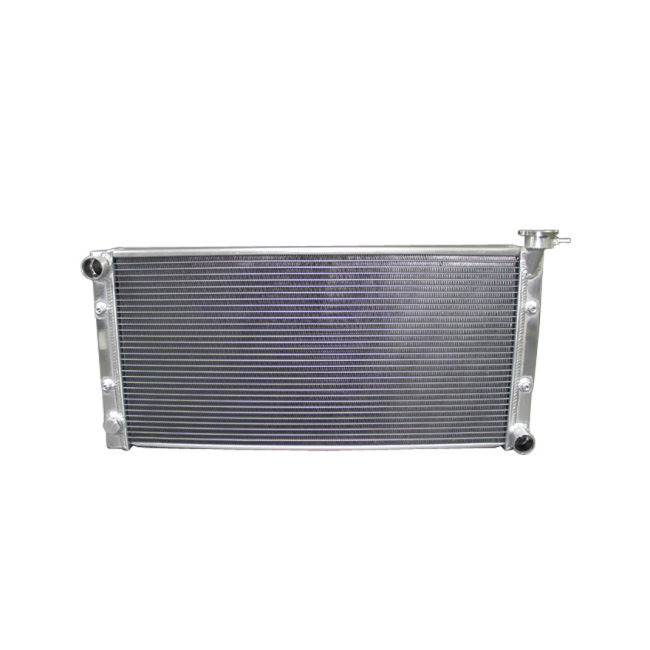

Radiator:
- Overall Size: 28.75"x13.5"x1.5"
- Core Size: 25.5"x13"x1.5"

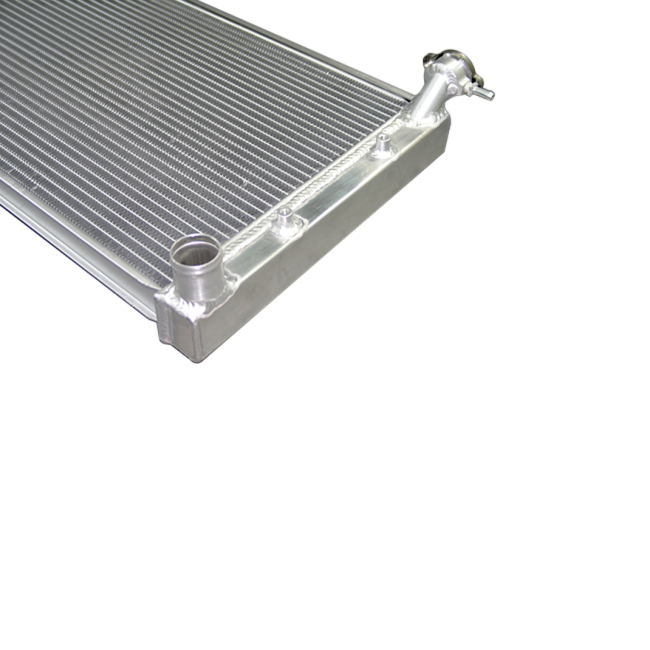

- 1.375" Inlet & Outlet

Note:
- Needs to cut the Frame a little bit and drill holes to mount the radiator
- It fits 510 perfectly
- Big Core. High Cooling Efficiency

Optional Two Radiator Fans:
- Size: 12"
- Thickness (Motor Height): 2.5"
- Air Flow Rate: >1130 CBM/Hr
- Speed: 2100 RPM
- Power: 12VDC, 40W

Optional One Aluminum Shroud:
- Aluminum Sheet, with Enforced Support for Maximum air Flow
- Very Thin Height, Space Saver
- Bolt on to Radiator with Stainless Screws provided
- With Rubber Strip Around to Protect the Core and Seal the Shroud

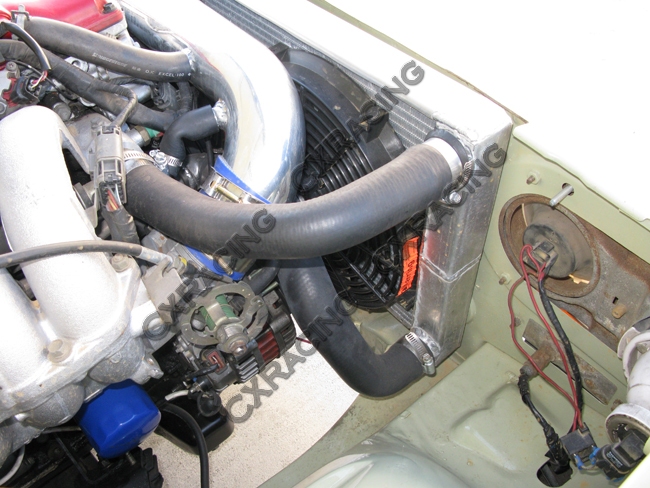

Optional Silicon Radiator Hoses:
- Fit the Radiator that has Inlet on the top driver side and drain outlet on the bottom Passenger side.
- 1.25" ID Hose.
- Made from 100% silicone, with 3 layers of Silicone, rated with 210 °C High Temperature.
　


Highlights:
- Especially Designed, Made for the Application Stated
- Fully Tested, Simple Easy Installation
- Offers Excellent Performance Gains
- One of the Best Kits on the Market, with High Quality Products and Affordable Pricing

Items_Included:
Racing Radiator x1

Note: Shroud, Fans and Hoses Are NOT Included, But Optional.


Write a review

Please login or register to review

Aluminum Coolant Radiator For Datsun 510 with SR20DET Engine Swap Manual Transmission

  • Brand: CXRacing
  • Product Code: RAD-D5
  • Availability: In Stock

  • $212.00

Available Options


0 reviews / Write a review
