CXRacing Turbo Manifold Downpipe + Intercooler Kit For 2000-2006 BMW E46 M3 with S54 Engine. Come With Aluminum Intake Manifold.
Newly Developed Turbo Kit for the E46 S54 Engine, Excellent Fitment, Support 600+ HP.
Comes with:
Turbo Manifold, Intake Manifold, Turbo, Wastegate, Downpipe, Intercooler, Piping Kit, and BOV. One of the Most Completed Turbo Kits for the E46 M3.

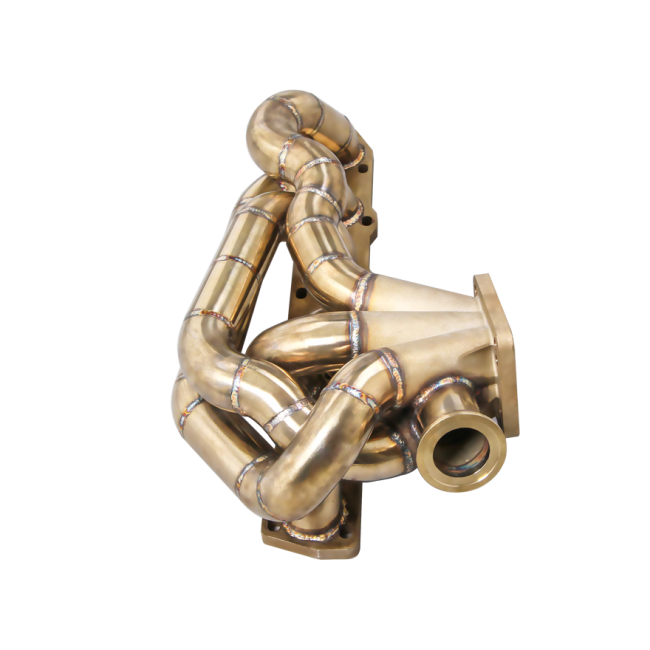

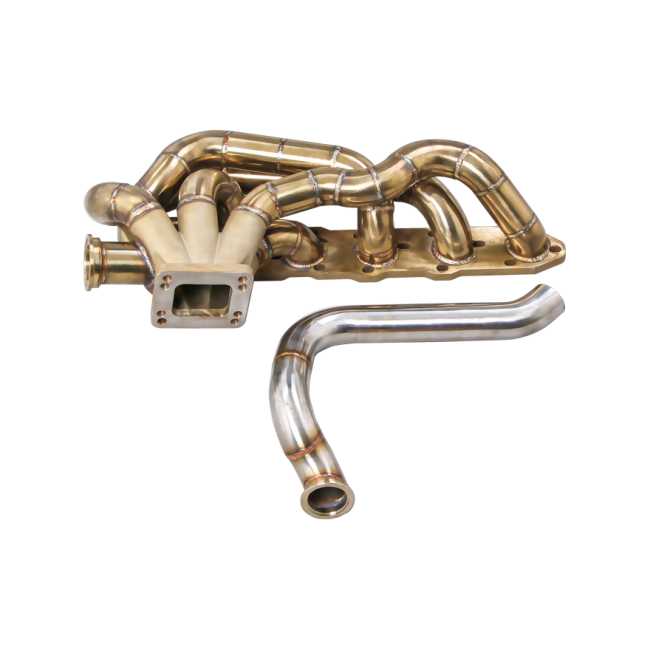

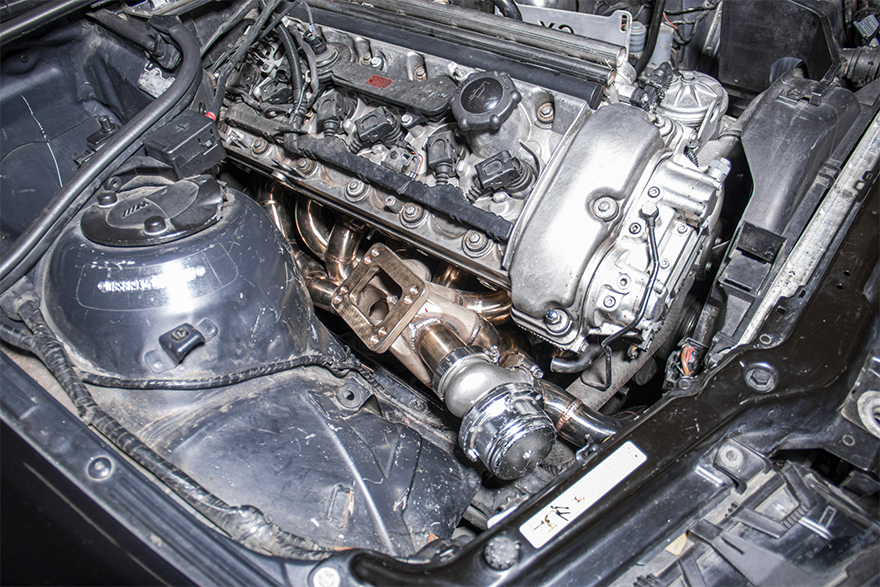

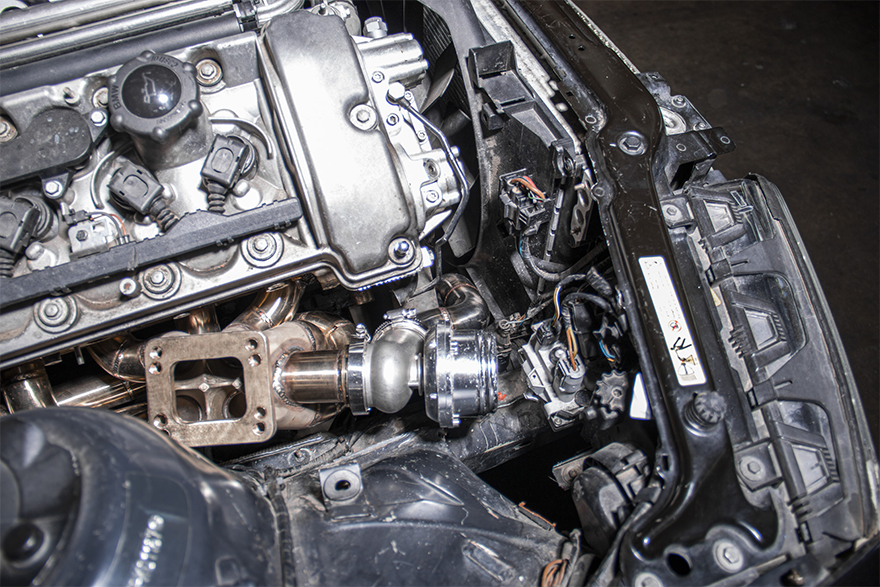

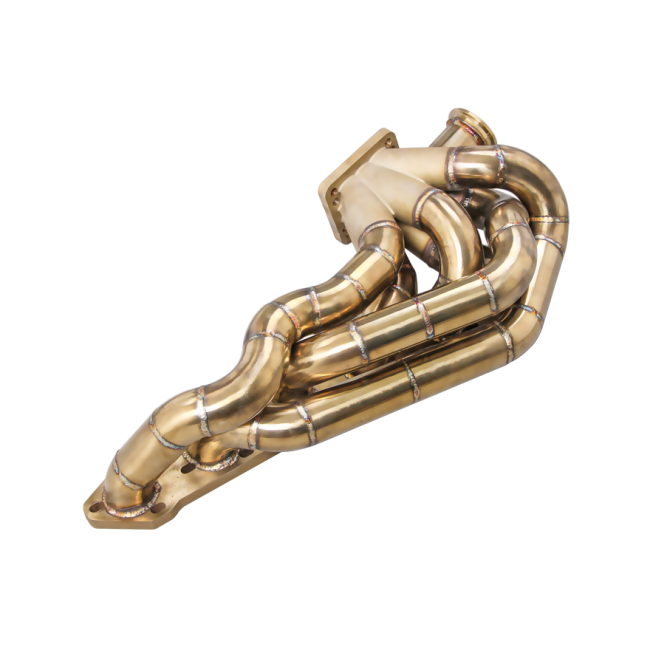

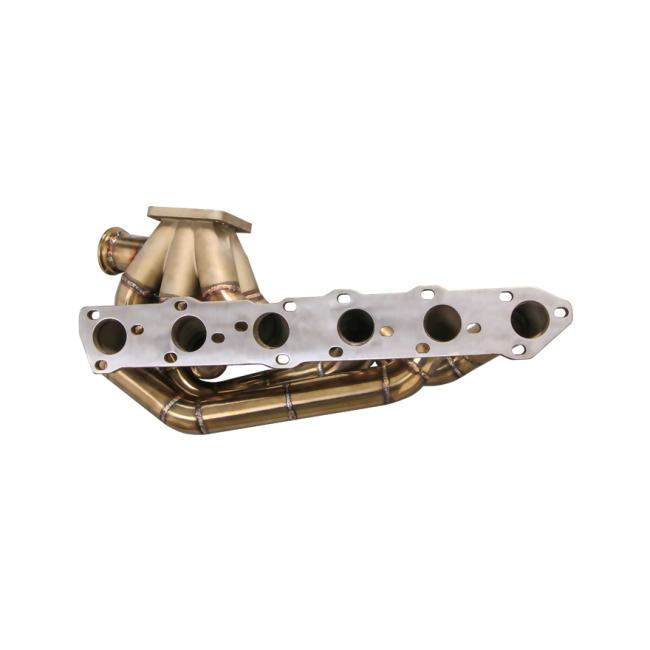

-Thick Wall Tube Turbo Manifold, Supports T3 and T4 Turbos, 1.75" 11 Gauge Tubes, CNC Cut Engine Flange

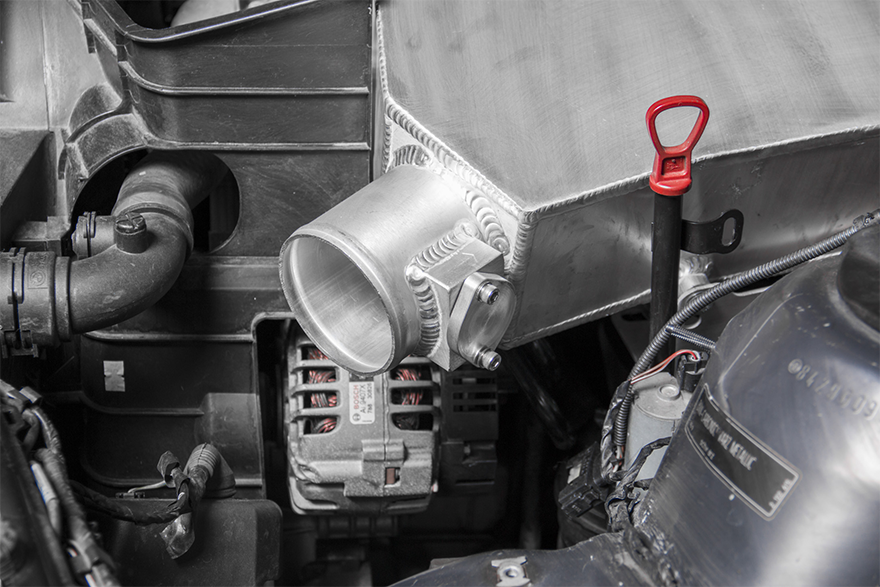

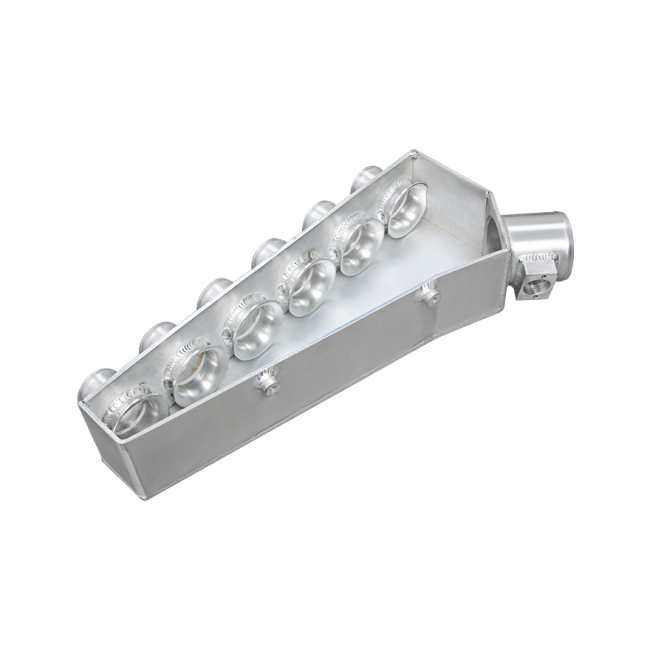

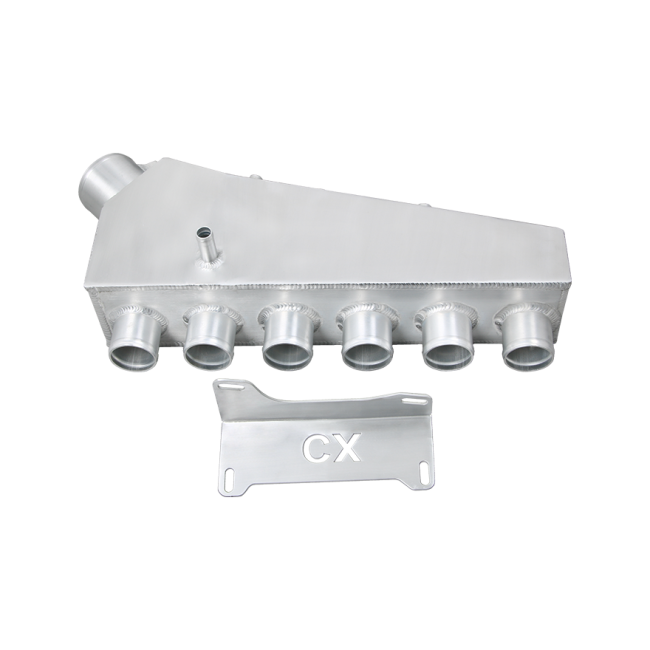

-Aluminum Intake Manifold, Built-in Velocity Stack for Each Cylinder, Smoother Air Flows, 2.25" Connections to Each ITB, 3.5"Air Inlet, Matching Factory Vacuum Ports, Comes with Aluminum Mounting Bracket, Securely Holding The Manifold to the Engine

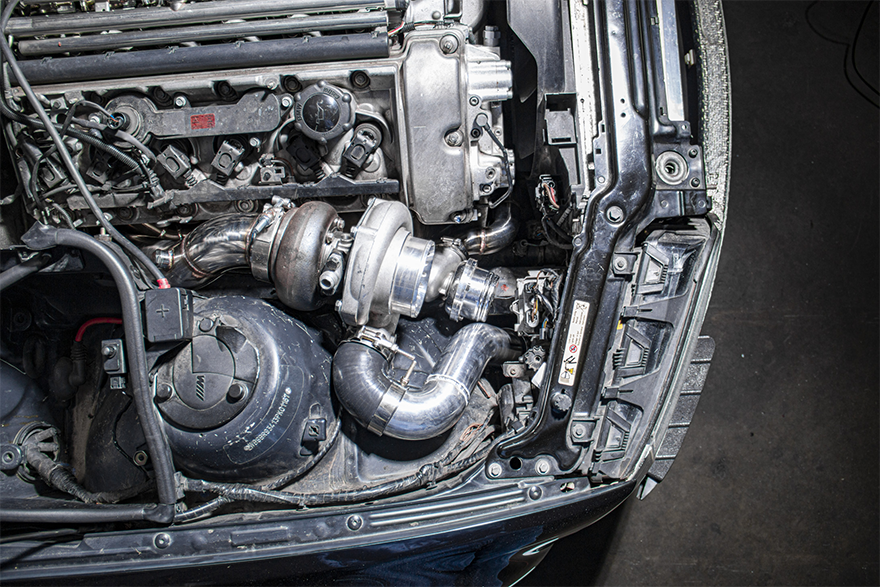

-GT35 T4 Turbo with 0.68 AR Exhaust Housing, Fast Spool, Supports 600 HP, Comes with Oil Lines and Fittings
-44mm Vband 8 PSI Wastegate
-3" Stainless Vband Downpipe, Fits Stock Location Exhaust System

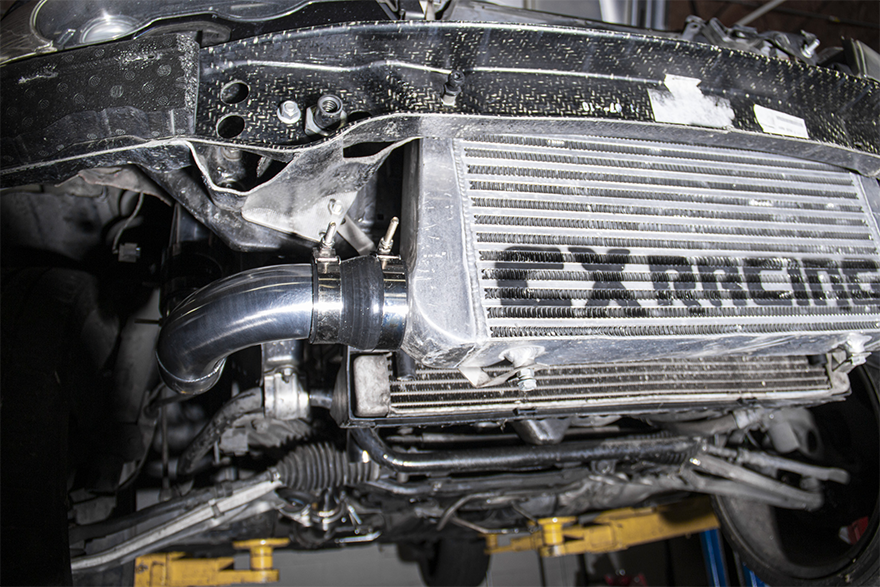

-3" Core Intercooler, Comes with Mounting Brackets, Bolt On Fitment

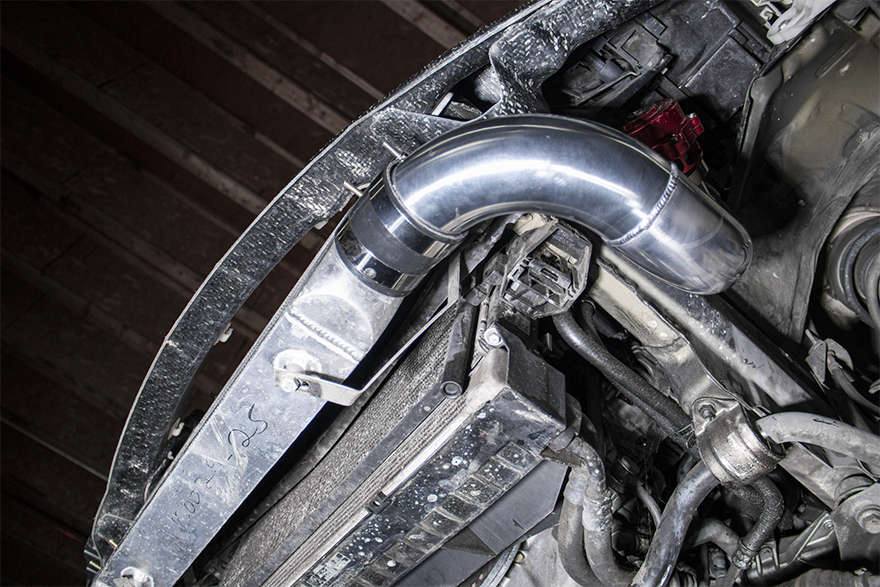

-Aluminum Mandrel Bent Piping, 2.5" Hot Side and 3" Cold Side. Comes with 50mm BOV
Note:
1. This Turbo Kit is for Hardware Kit ONLY, You Will Need to Upgrade the Fuel System and Re-Tune the Engine
2. Default Kit Comes with Journal Bearing Turbo, Supports 600 HP, Can be Upgraded to Ball Bearing Turbo Supports 700+ HP. Contact Us.
APPLICATION(S):
Chassis: 2000-2006 BMW 3 Series E46
Engine: S54
Note:This Product was developed based on US model Left-Hand-Drive chassis. For Right-Hand-Drive, due to potential conflict with steering shaft, fitment most likely will be an issue and we don’t guarantee fitment. Modification is needed and we won’t accept return due to Right-Hand-Drive fitment issues.

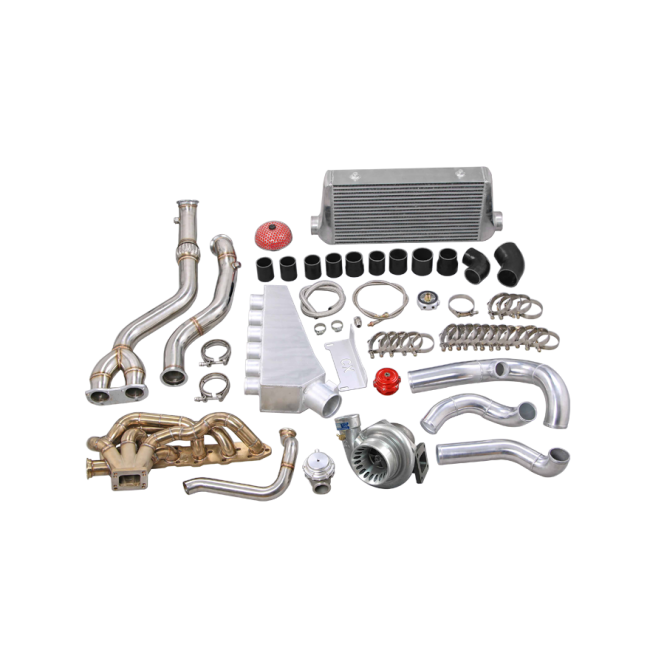

Product(S):

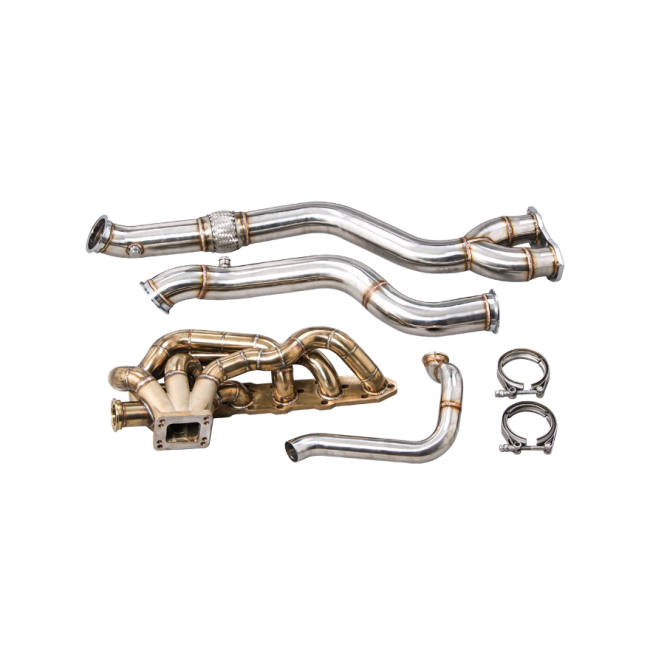

Manifold and Downpipe Kit x1
Intake Manifold x1
GT35 T4 Turbo Charger, with Air Filter x1
44mm 8PSI Wastegate x1
Oil Filter Sandwich and Oil Line Kit x1
Intercooler, with Mounting Bracket x1
Intercooler Piping Kit with Hoses, Clamps and 50MM Bov x1
3" Vband Clamp x2
Optional One Dual Ball Bearing Turbo is Available with Extra Payment, Please Select the Ball Bearing Option When Buying.

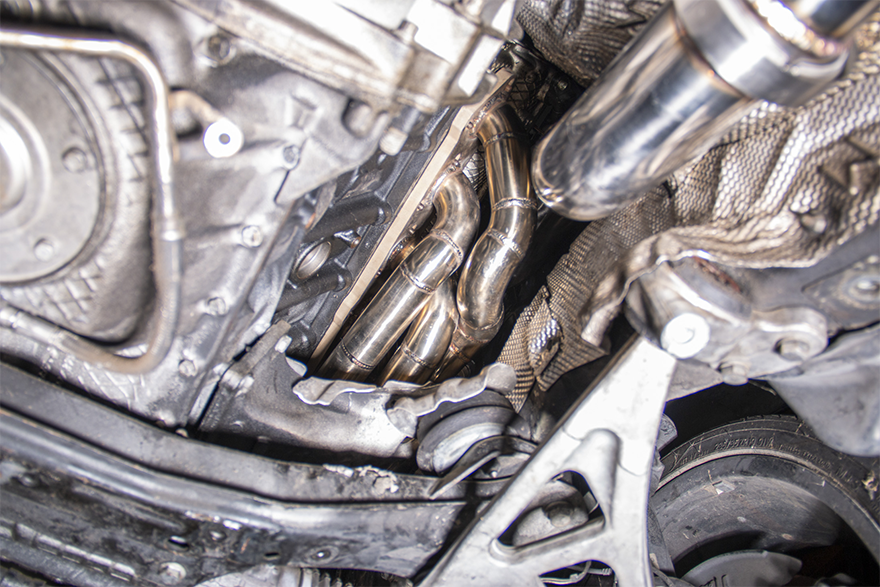

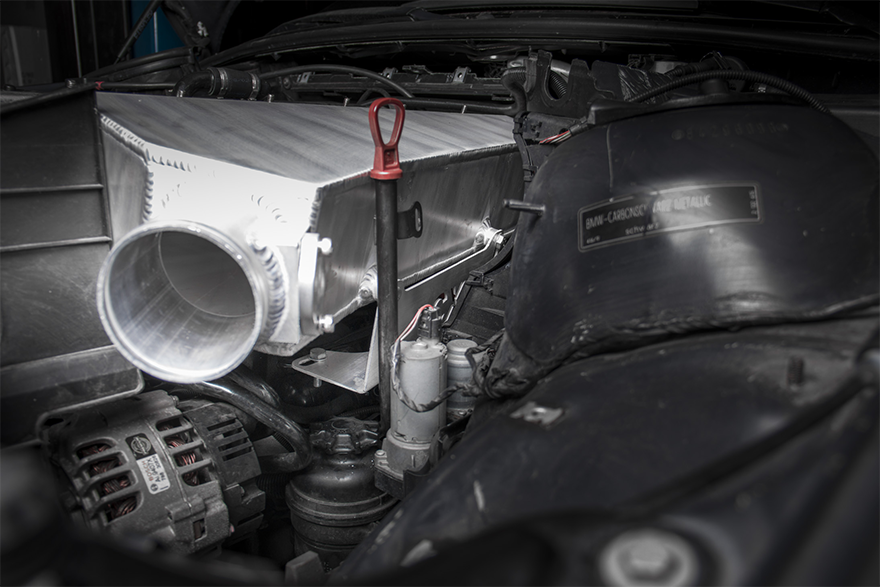

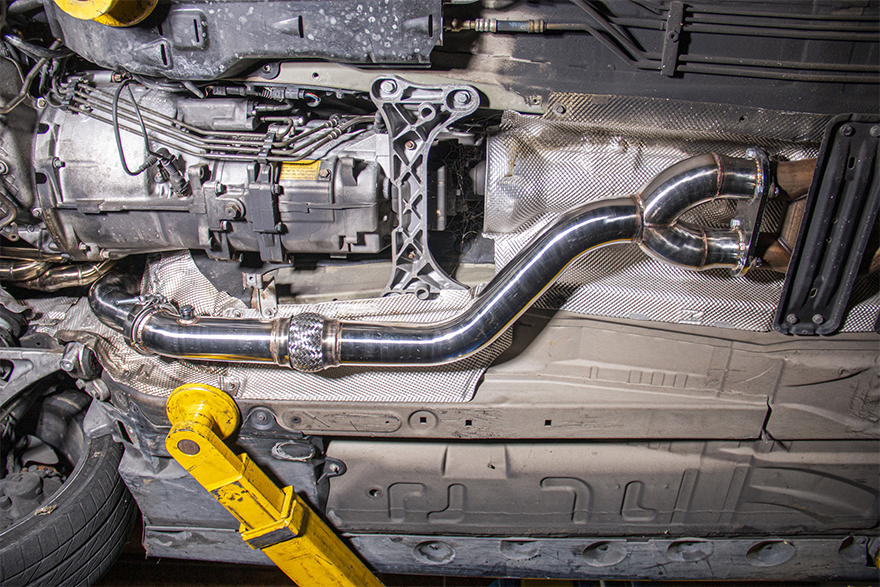

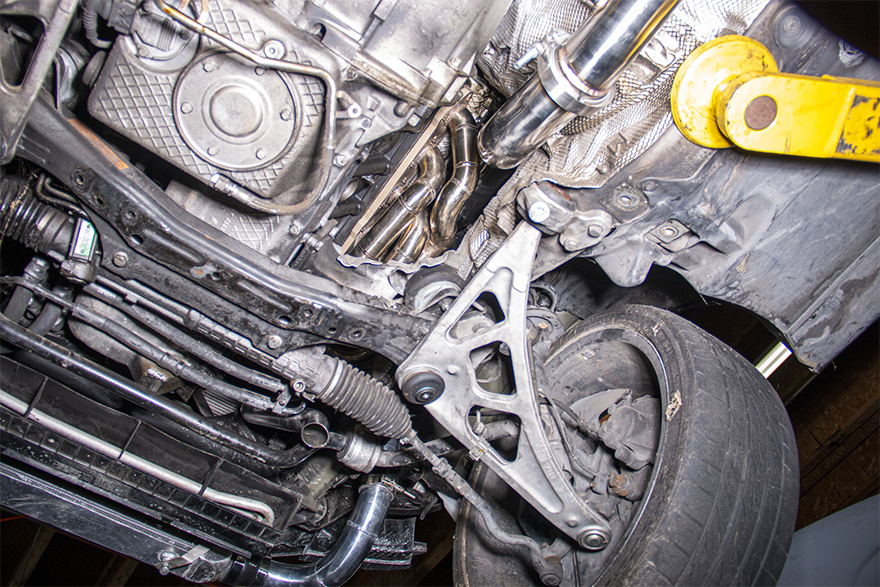

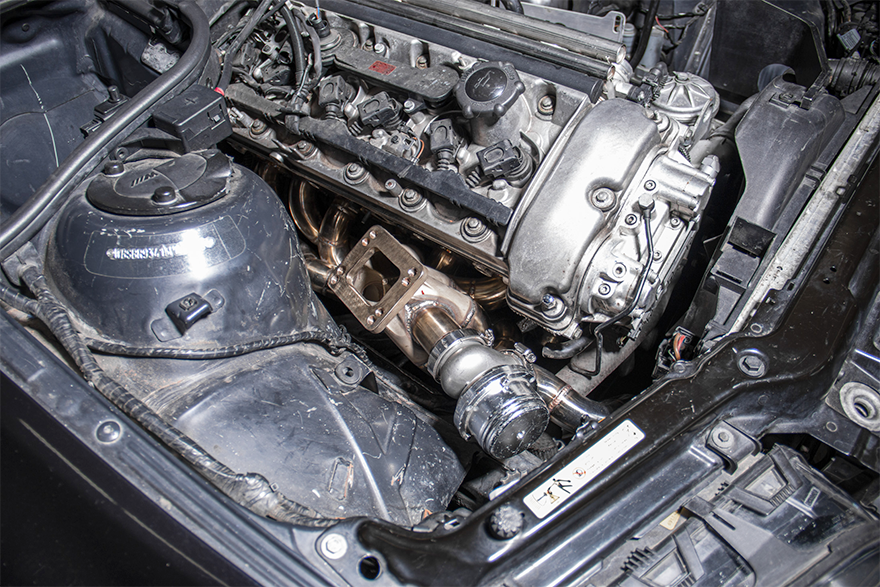

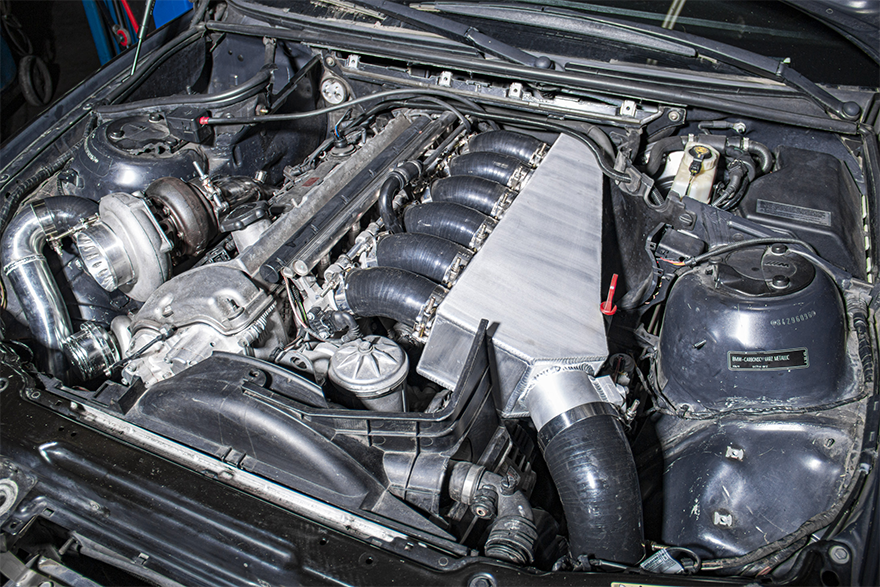

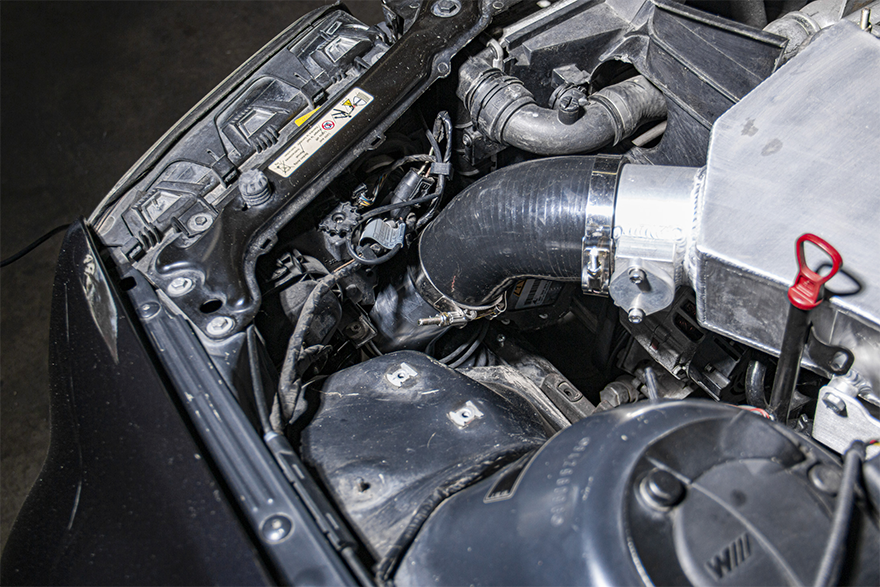

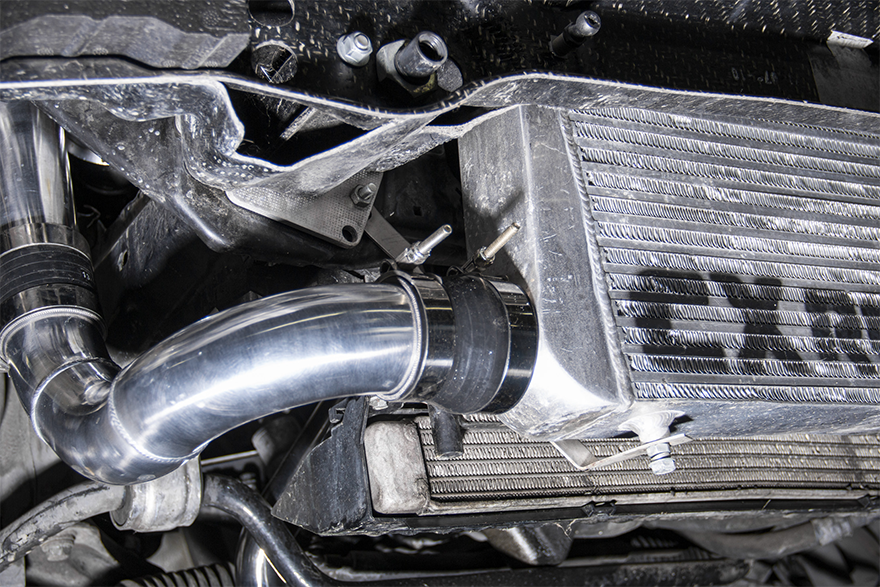

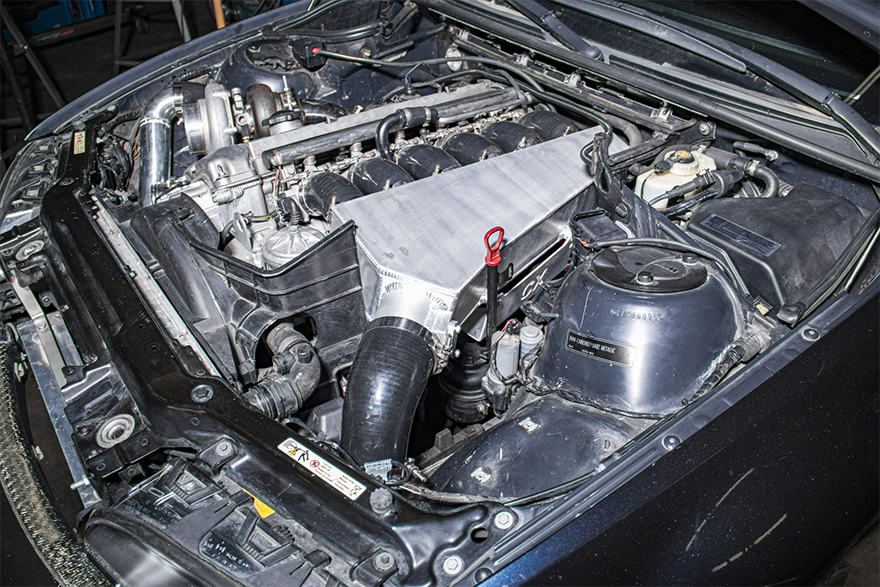

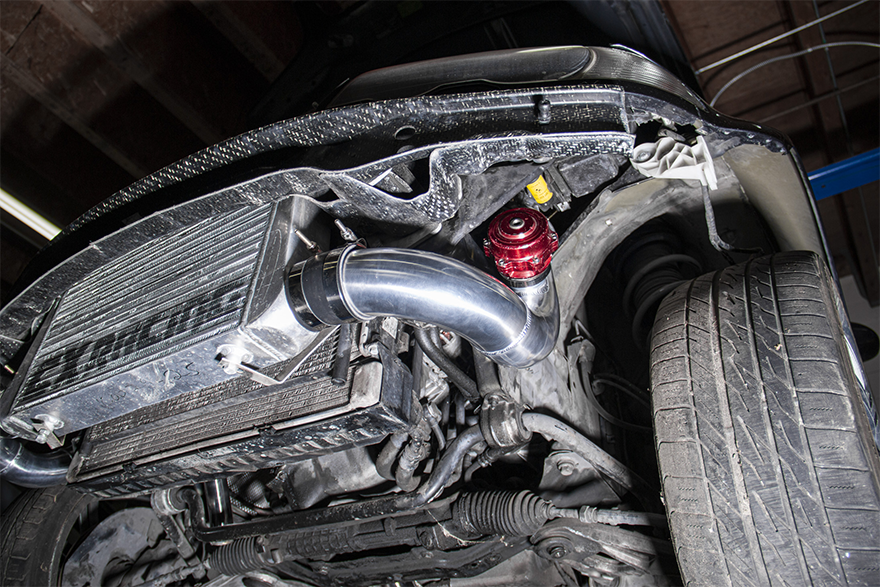

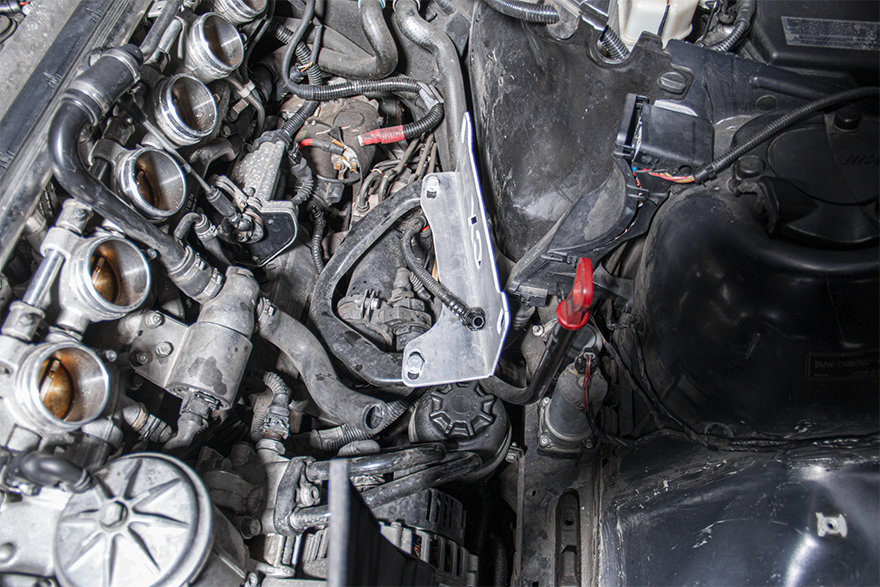

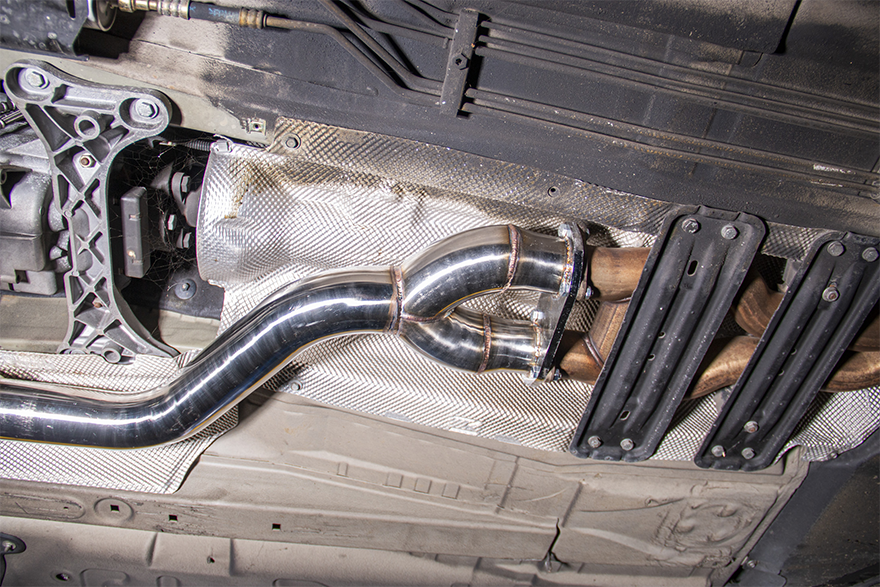

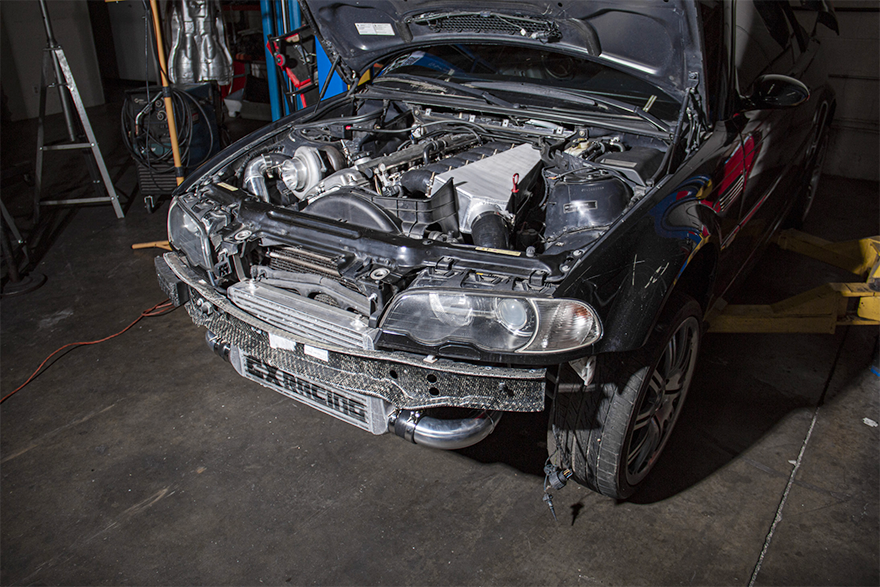

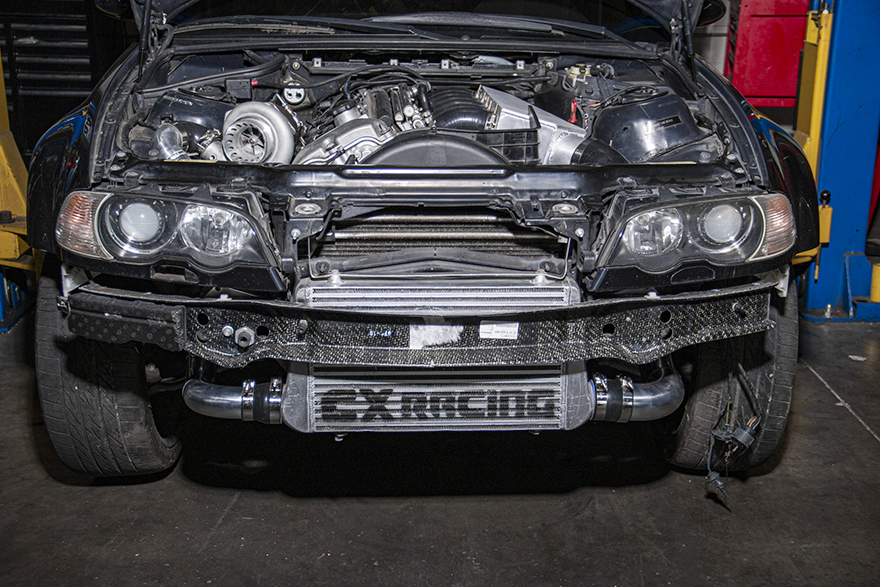

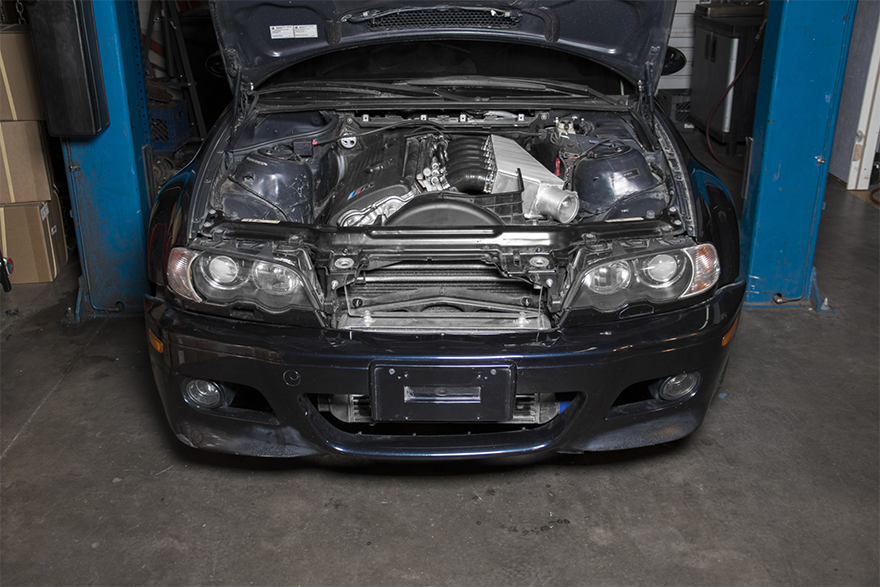

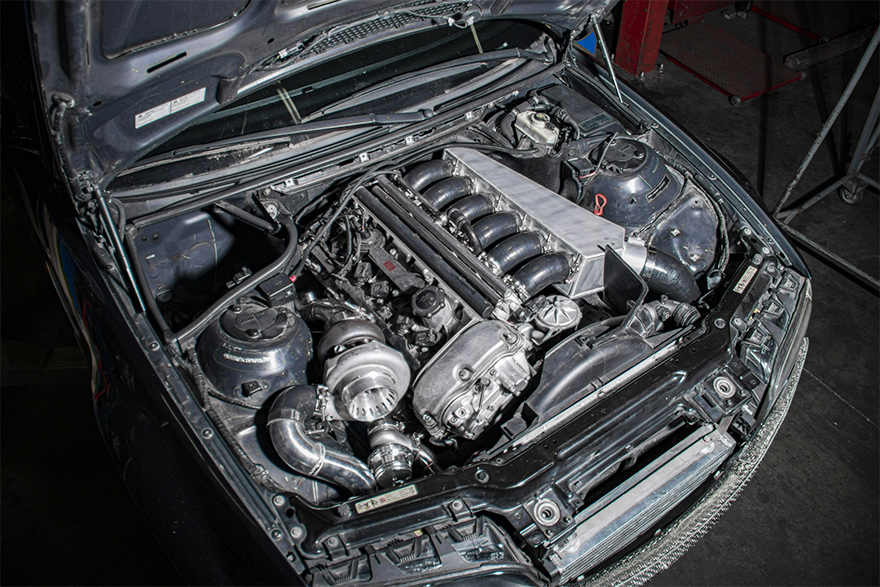

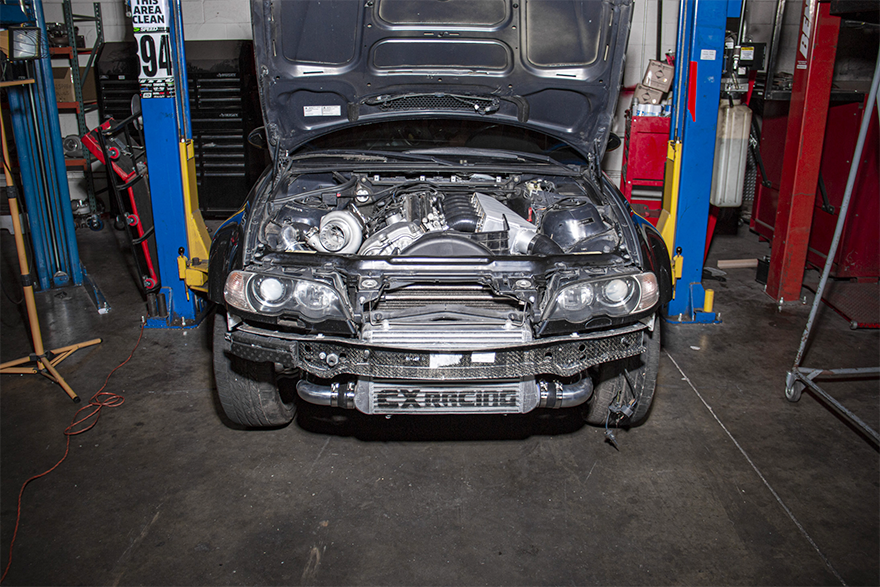

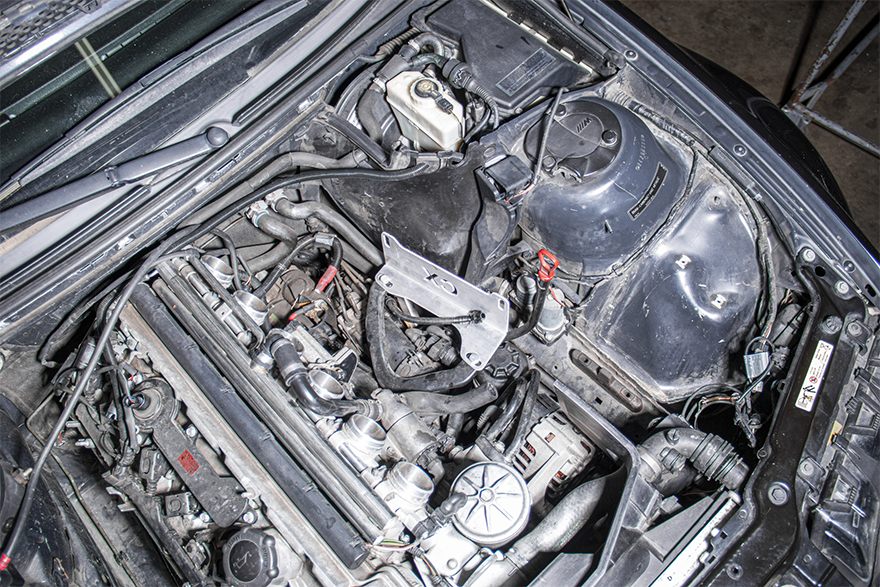

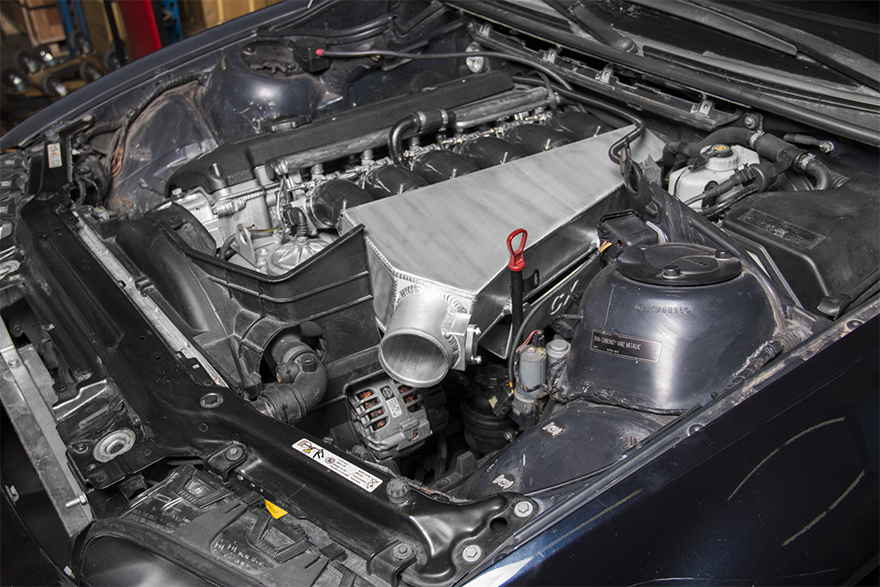

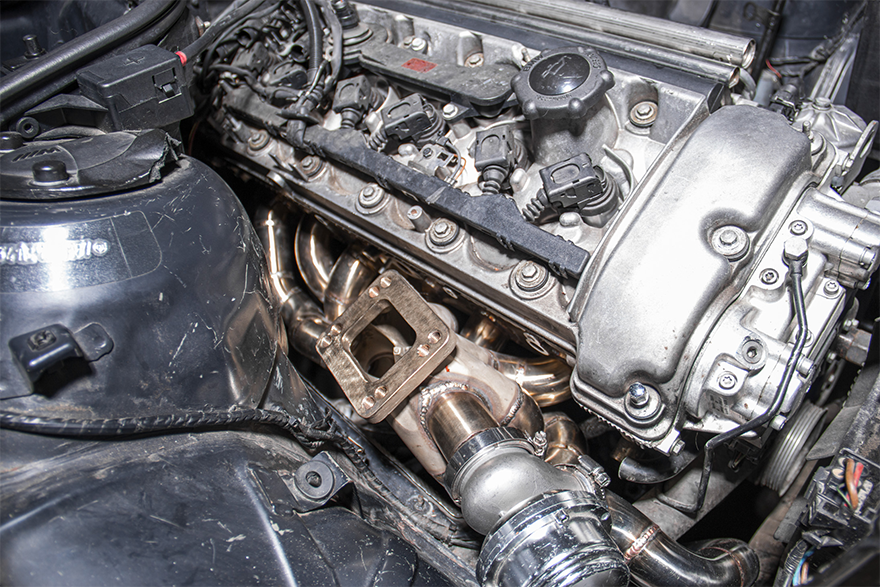

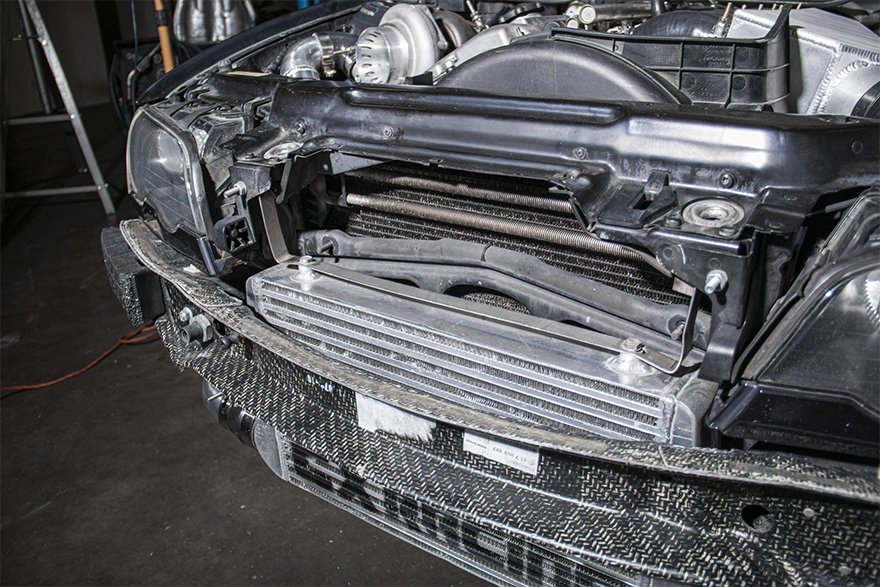

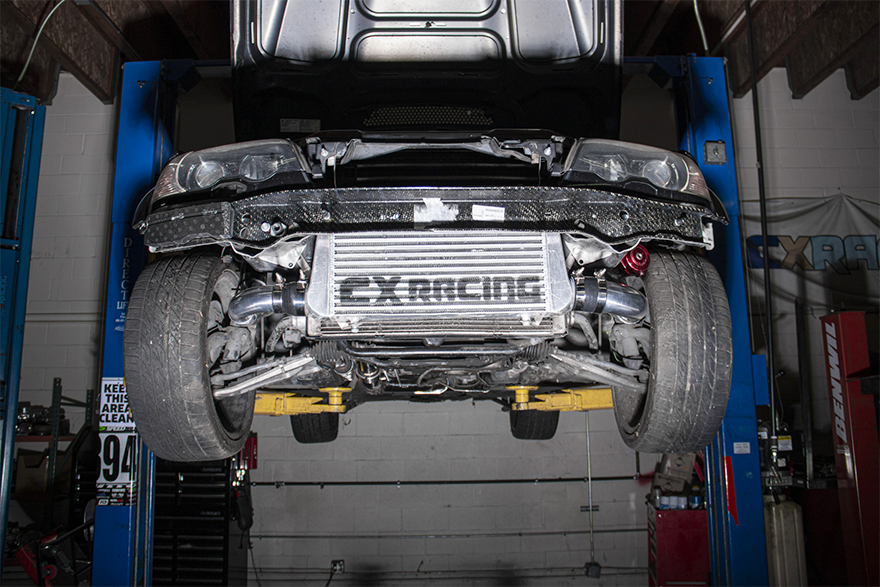

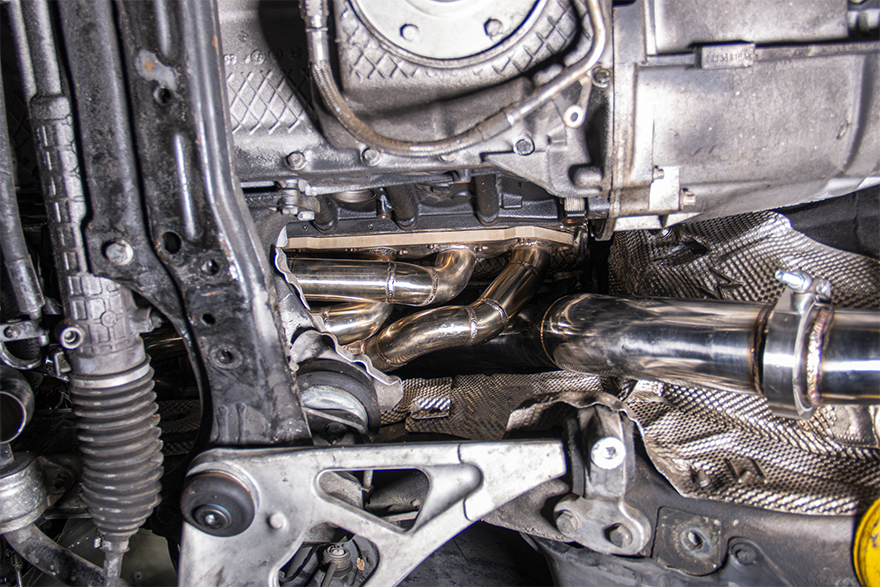

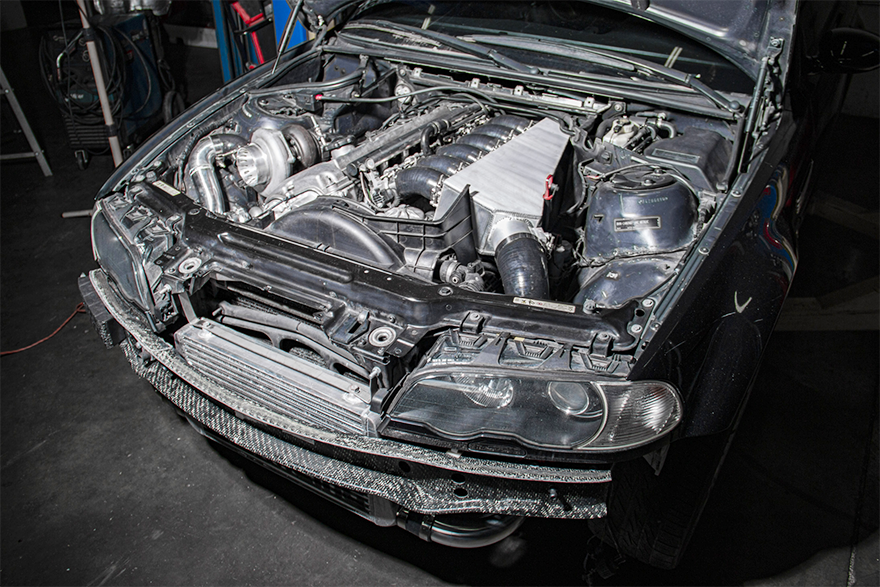

Installed Pictures:
Newly Developed Turbo Kit for the E46 S54 Engine, Excellent Fitment, Support 600+ HP.
Comes with:
Turbo Manifold, Intake Manifold, Turbo, Wastegate, Downpipe, Intercooler, Piping Kit, and BOV. One of the Most Completed Turbo Kits for the E46 M3.
-Thick Wall Tube Turbo Manifold, Supports T3 and T4 Turbos, 1.75" 11 Gauge Tubes, CNC Cut Engine Flange
-Aluminum Intake Manifold, Built-in Velocity Stack for Each Cylinder, Smoother Air Flows, 2.25" Connections to Each ITB, 3.5"Air Inlet, Matching Factory Vacuum Ports, Comes with Aluminum Mounting Bracket, Securely Holding The Manifold to the Engine
-GT35 T4 Turbo with 0.68 AR Exhaust Housing, Fast Spool, Supports 600 HP, Comes with Oil Lines and Fittings
-44mm Vband 8 PSI Wastegate
-3" Stainless Vband Downpipe, Fits Stock Location Exhaust System
-3" Core Intercooler, Comes with Mounting Brackets, Bolt On Fitment
-Aluminum Mandrel Bent Piping, 2.5" Hot Side and 3" Cold Side. Comes with 50mm BOV
Note:
1. This Turbo Kit is for Hardware Kit ONLY, You Will Need to Upgrade the Fuel System and Re-Tune the Engine
2. Default Kit Comes with Journal Bearing Turbo, Supports 600 HP, Can be Upgraded to Ball Bearing Turbo Supports 700+ HP. Contact Us.
APPLICATION(S):
Chassis: 2000-2006 BMW 3 Series E46
Engine: S54
Note:This Product was developed based on US model Left-Hand-Drive chassis. For Right-Hand-Drive, due to potential conflict with steering shaft, fitment most likely will be an issue and we don’t guarantee fitment. Modification is needed and we won’t accept return due to Right-Hand-Drive fitment issues.
Product(S):
Manifold and Downpipe Kit x1
Intake Manifold x1
GT35 T4 Turbo Charger, with Air Filter x1
44mm 8PSI Wastegate x1
Oil Filter Sandwich and Oil Line Kit x1
Intercooler, with Mounting Bracket x1
Intercooler Piping Kit with Hoses, Clamps and 50MM Bov x1
3" Vband Clamp x2
Optional One Dual Ball Bearing Turbo is Available with Extra Payment, Please Select the Ball Bearing Option When Buying.
Installed Pictures:
Turbo Intake Manifold Downpipe Intercooler Kit For BMW E46 M3 S54 Engine 600+ HP
- Brand: CXRacing
- Product Code: TRB-KIT-IM-BMW-E46-M3S54-IC
- Availability: Pre-Order ETA June/July-25
-
$3,617.00
