CXRacing V-Mount Radiator/Intercooler + Piping Pipe Tube Kit For 1989-2000 Nissan 300ZX Z32 with RB25DET Motor Swap with Top Mount Turbo and Aftermarket Intake Manifold Setup

For RB25/Z32 Swap, There Are Many Known Issues or Difficulties:

1. Due to Long Engine Block, Engine Sits Very Forward on the Engine Bay, Have Little Room Left For Radiator and Intercooler, Many Other Kits Have to Cut the Front End to Make It Works.
2. Many Different Combinations for Turbo (Stock Twin Turbo vs. Top Mount Turbo) and Intake Manifold (Stock Intake Manifold vs. AfterMarket Manifold)

We Have Addressed These Issues and Also Offered All Options to Support Different Combinations of Turbo and Intake Manifold Setups.

This Kit Is for Stock Turbo and Stock Intake Manifold Setup. It Is a Bolt On Kit, Keeps Stock Chassis Unchanged, No Cut. V- Mount Intercooler/Radiator Offer the Best Cooling Solution.

Application:
Chassis: 1989-2000 Nissan 300ZX Z32
Motor: RB25DET
Turbo: Top Mount Single Turbo (Not Stock Turbo)
Intake Manifold: Aftermarket Intake MF

Note:
-This Is for V-Mount IC/Radiator Kit ONLY. Engine/Transmission Mount Kit, Turbo Kit, Manifold, Downpipe, Oil Pan Are NOT Included.
-No Instillation Instruction Is Provided. But We Show Many Installed Pictures, It Is Very Intuitive.

Products Being Sold:
V-Mount Intercooler / Radiator Kit

This is CXRacing's Newest Products for the Application Stated Above. All Parts Are Developed from Ground Up in Our R&D Center in USA, Designed and Built for Improved Performance Gains, with Excellent Fitment and Easy Installation.

We Also Offer Other Combinations of RB25/Z32 Swap, Please Check Our Website

Product Info and Spec:
Intercooler Kit:
Bar & Plate Aluminum Intercooler
Core Size: 18"x11"x3"
Overall Size: 24"x11"x3"
2.5" Inlet & Outlet One Side
3" Thickness Core
3" Pipe Connects to Throttle Body, then Reduce to 2.5" Intercooler Pipes
Comes with BOV, Silicon Hoses, and T-Bolt Clamps

Aluminum Racing Radiator:
Core Size: 25.5"x12.5"x2.25"
Inlet outlet: 1.5"
Comes with Filler Tank

Notes:
-Off Road or Track Use ONLY, NOT for Street Use
-Due to the Complexity of Swapping a Motor to Different Chassis, Please Make Sure that You Understand the Application Stated Here are the Right Parts for Your Project

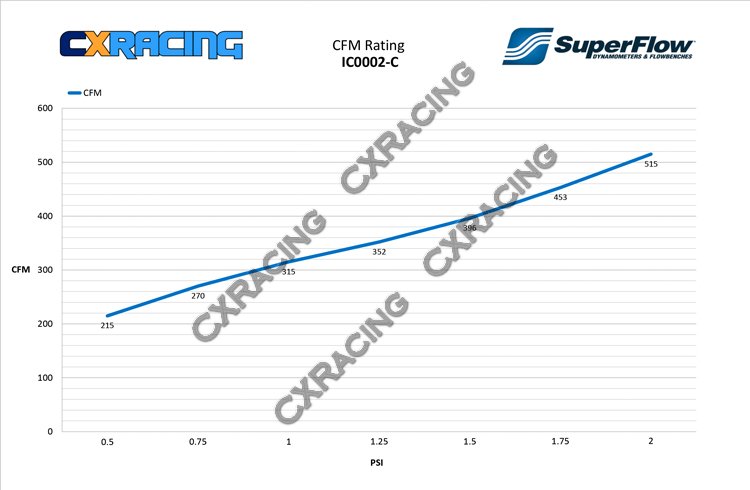

Click Below Picture to See Flowbench Test:


Highlights:
Especially Designed, Made for the Application Stated
Fully Tested, Simple Easy Installation
Offers Excellent Performance Gains
One of the Best Kits on the Market, with High Quality Products and Affordable Pricing

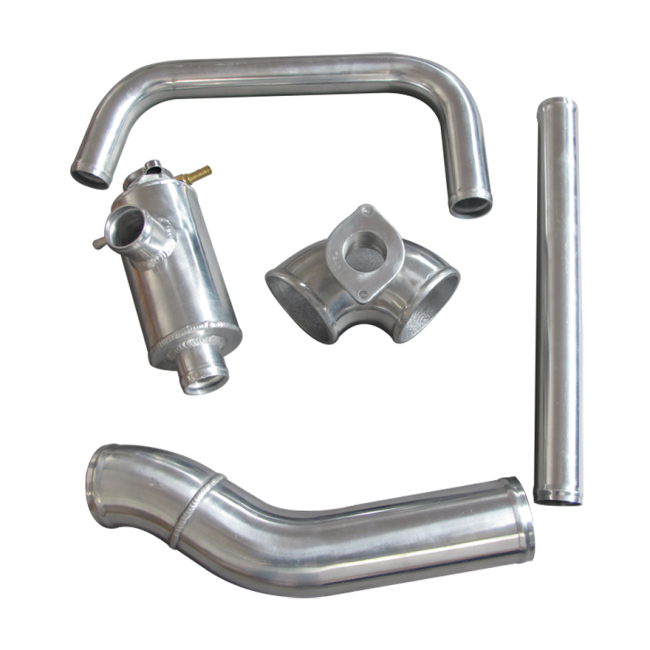

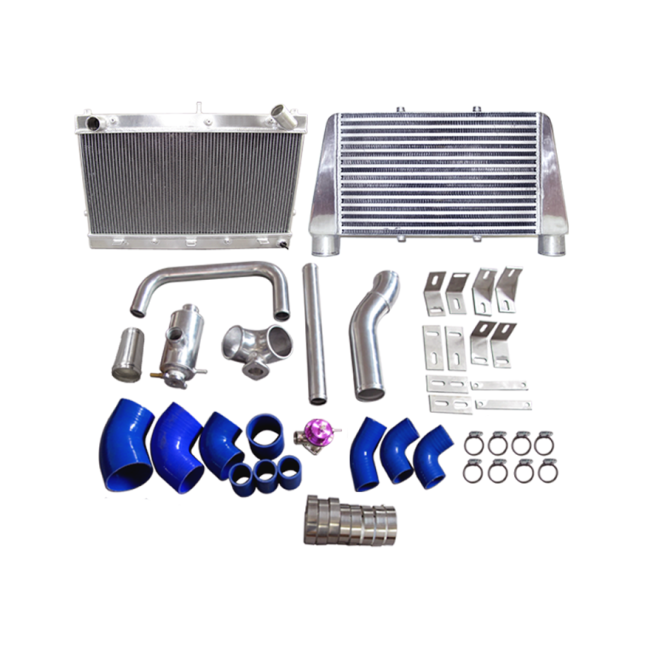

Items Included:
Piping Kit with Hoses and Clamps, BOV
Intercooler
Radiator

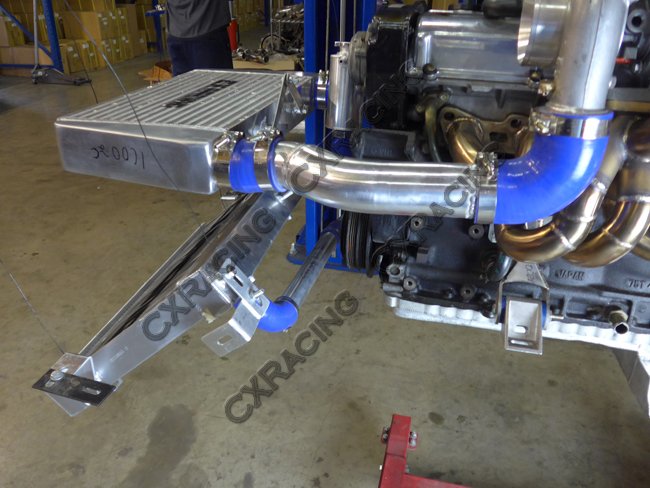

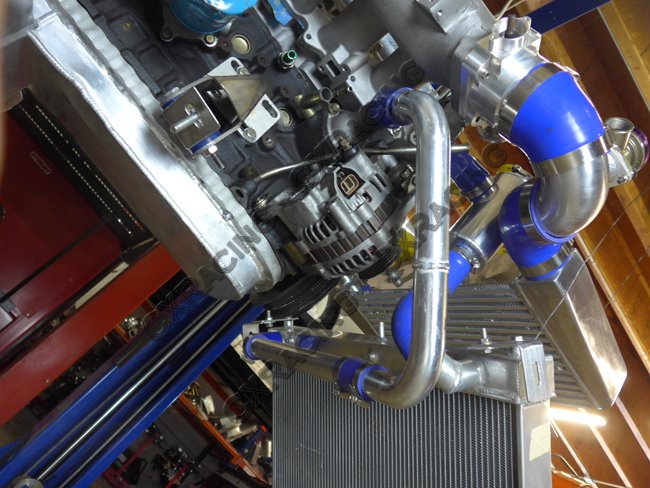

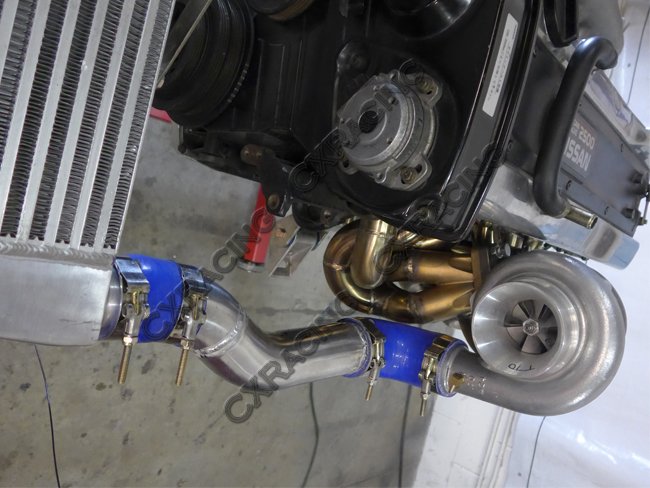

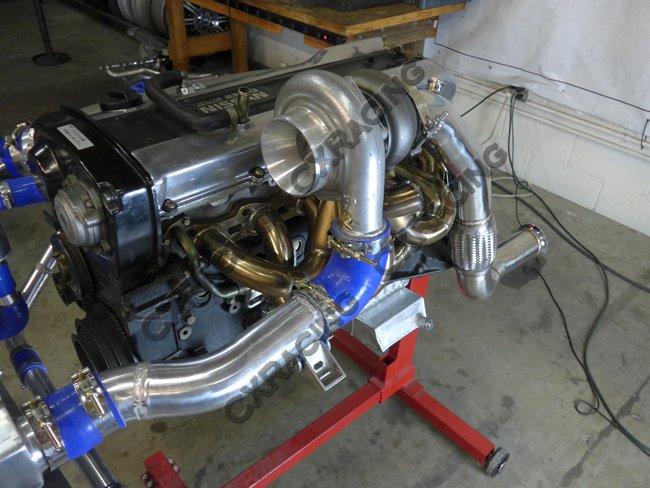

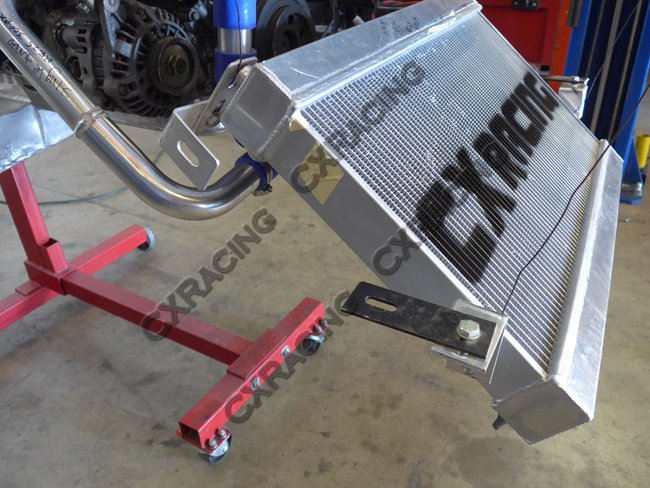

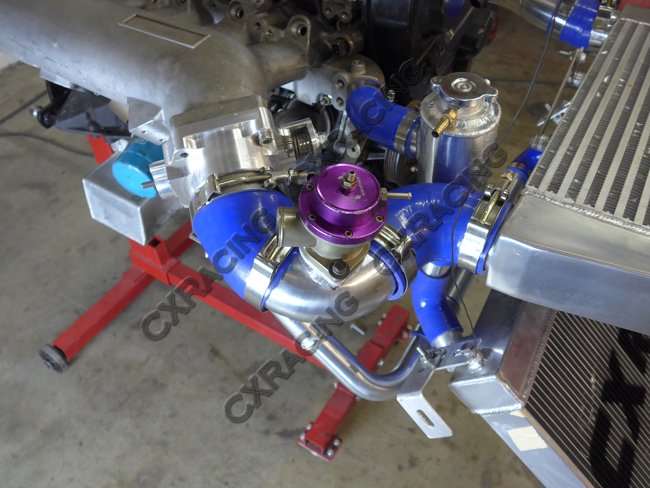

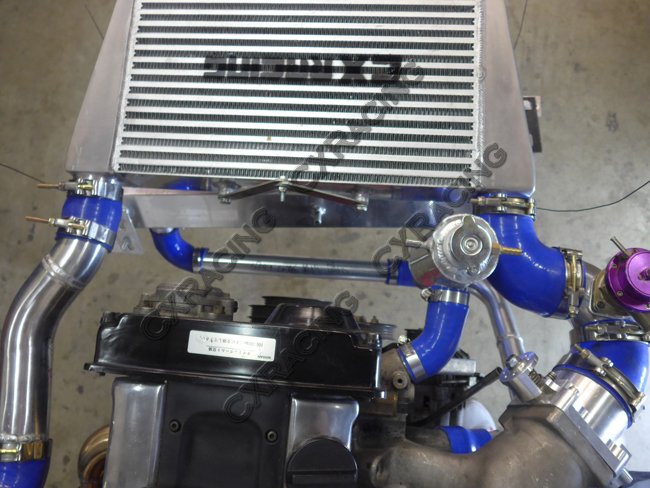

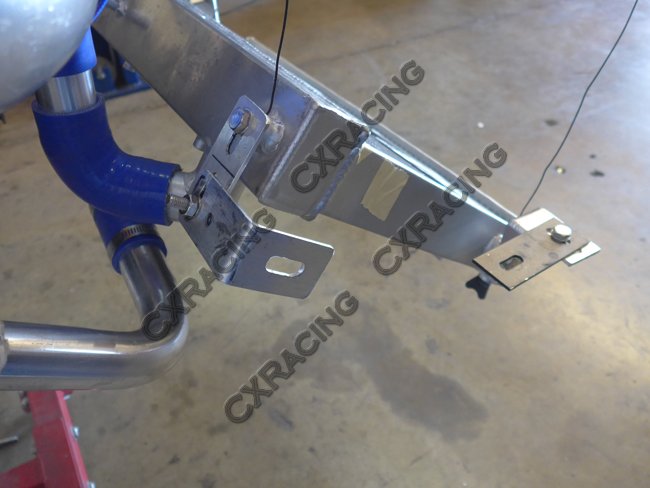

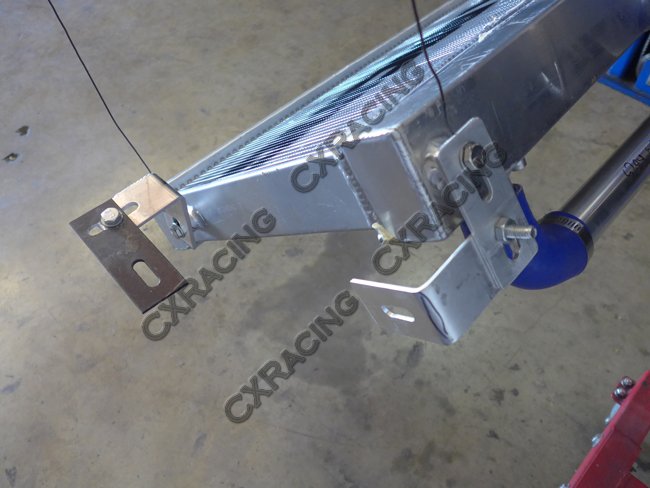

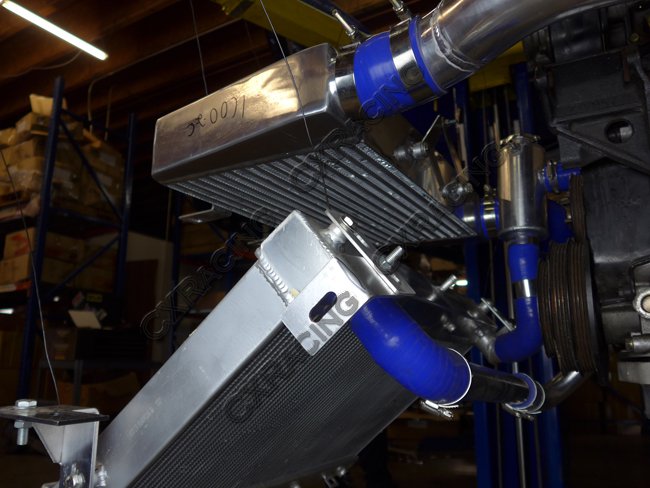

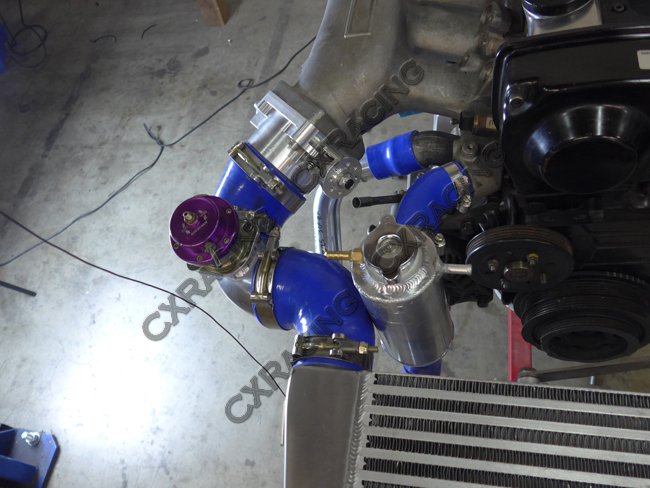

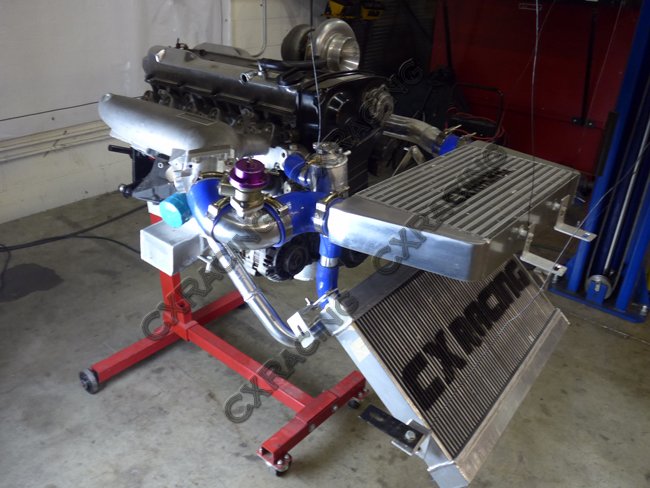

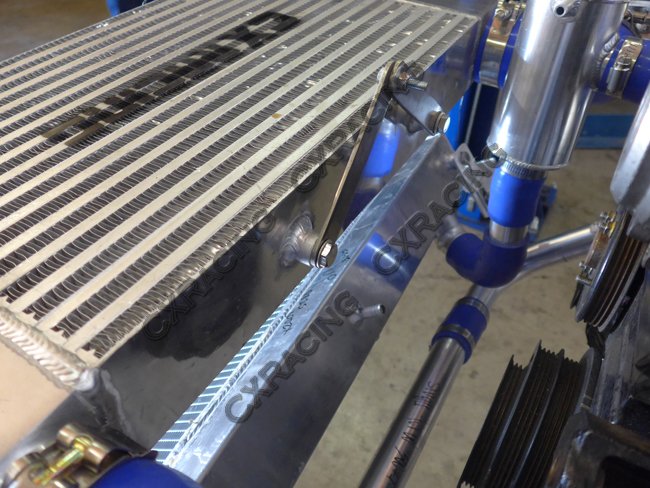

Below Are Installation Pictures:

Parts Shown On Installed Below Pictures are NOT All Included. They Are for Demo ONLY. Specific Items Being Sold Are ONLY The Items Listed on the "Items Included" List Above.
