CXRacing Intercooler Pipe Tube Kit For Toyota Supra with 1JZ-GTE 1JZGE with Single Turbo

Intercooler + Piping + BOV + Silicon Hose + T-Clamp + Bracket

This Kit Is A Bolt On Kit For 1JZ-GTE On A 86-92 Supra MK III, MA70 MA71 Chassis With 1JZ Engine Swap, Or JDM GA70 JZA70

Bolt On Fit (Single Turbo, Clock Down Air Outlet). This Kit Is One Of The Best Kits On The Market, Simple Design, Easy Install, Bolt On, High Air Pass Flow, Almost No Pressure Drop. With This Kit On a T67 Turbo, We Dyno It With 500+HP. Please Click In Our Updated Dyno And Track Video

We Are Also Working On a LOT of SUPRA Products (1JZ-GTE TT Stock Intercooler Kit, 7MGTE Stock Intercooler Piping Kit And Upgrade FMIC Kit, 7MGTE Turbo Upgrade Kit, Just To Name A Few. All These Products Are Bolt On, Dyno Tested, Track Proven

Note :
- This Kit Bolts On To Single Turbo Conversion For 1JZ, Turbo Outlet Clock Down As Picture Shown. This Car's Turbo Has A Sharp 90 Degree Cast Elbow Pipe Welded. But We Also Included a 2.5" 90 Degree Hose, So It Fits Without Welded Elbow Pipe. If You Use A Smaller Turbo Outlet, Please let Us Know And We Will Match The Kit With A Correct Reducer Hose And Clamp
- For Turbo Clocked The Outlet Above The Engine, We Also Provided A 90 Degree L Pipe In The Kit, With A Minor Modification, it Will Fit As Well

Application(s):
- Chassis: Toyota Supra
- Motor: Toyota 1JZ-GTE & 1JZGE

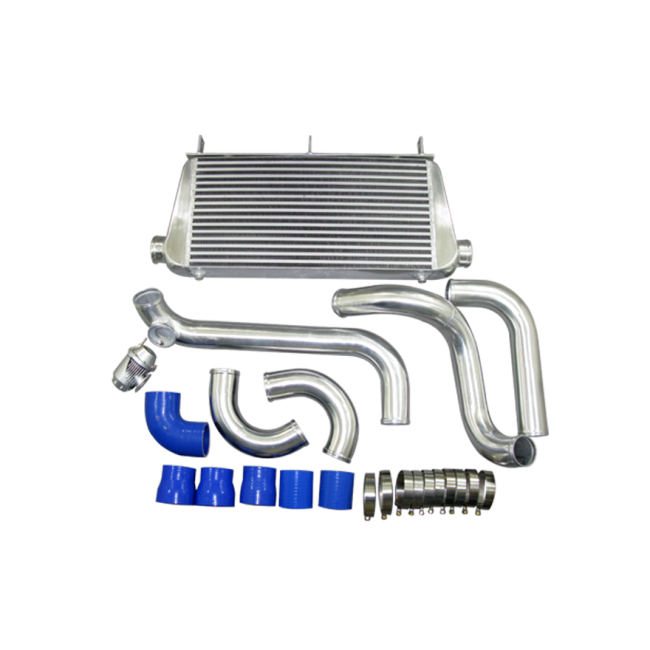

PRODUCT(S):

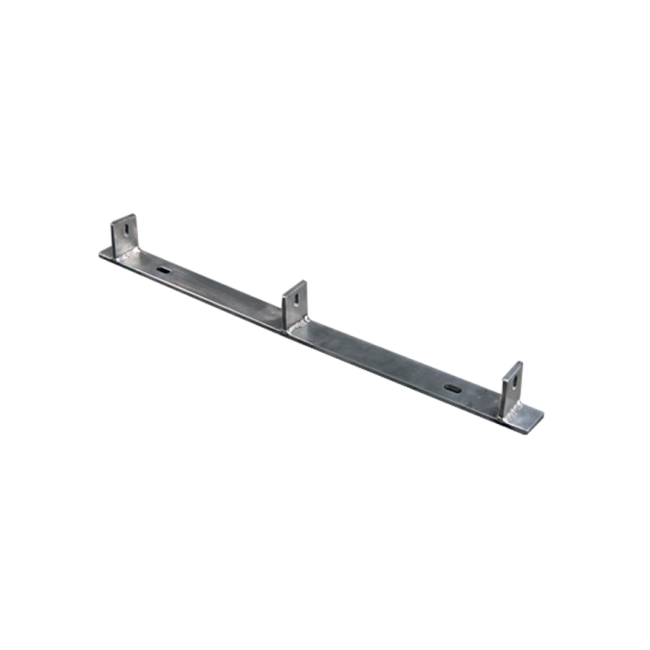

- 1x Aluminum Intercooler, with Mounting Bracket
- 1x Aluminum Piping Kit
- 1x Set of Silicon Hose (Blue or Black)
- 1x Set of T-bolt Clamp
- 1x Blow Off Valve

Technical Specifications:
-Intercooler: Bar & Plate Intercooler, 24"x12"x3" Core Size, 31"x12"x3" Overall Size, 3" Thickness Core, 3" Inlet/Outlet
-Piping Kit: 2.5" Mandrel Bent Aluminum Pipe. Comes with BOV, Silicon Hoses, and T-Bolt Clamps



Installed Photos:
