CXRacing Turbo Kit + Intercooler Piping Kit + For 82-92 Chevrolet Camaro with SBC Engine

This Is CXRacing's Latest Turbo Kit for Chevrolet Camaro SBC Engine, Bolt On Fitment, Makes Big Power:
- T76 with 0.96 Exhaust AR Supports 700 HP with Quick Spool.
- T4 Turbo Elbow Adapter for Easier Installation.
- 60mm Vband Wastegate.
- 3" Cross Pipe, Clean Setup and Look.
- Big 4" Core Intercooler
- 50MM BOV.
- 3" Aluminum Piping.
- 3" Stainless Steel Downpipe

Comes with:

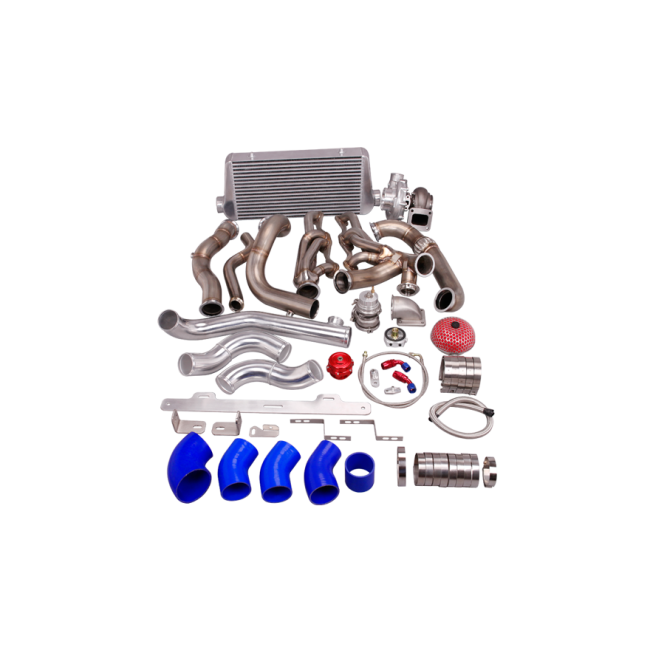

Turbo Headers + Cross Pipe + Turbo + Wastegate + Downpipe + Intercooler and Piping Kit

Notes:
1. Need to Work On the Exhaust System to Connect to the Downpipe (Due to Many Exhaust Options, The Downpipe Is NOT Connected to Stock Exhaust).

2. This Kit Is For Turbo Hardware ONLY, You Will Need to Upgrade Engine's Fuel System and Tune the Engine.

3. There Is NO Installation Guide Provided, However, We Show Many Installed Pictures On Car and On Engine Stand.

Application:
- Chassis: 82-92 Chevrolet Camaro
- Motor: Small Block Chevy

Product Being Sold:
Turbo Headers + Cross Pipe + Turbo + Wastegate + Downpipe + Oil Line Kit + Intercooler Kit with Mounting Brackets + Silicon Hoses + Clamps

Product Info and Spec:
Headers/Manifold Kit：
- 1.65" Runner Pipe
- 3" Merge and Cross Pipe
- 3" Downpipe

T76 Turbo and Wastegate:
- 4" Air Inlet
- 2.5" Compressed Air Outlet
- Wet Floating Bearings
- Oil Cooled
- Standard T4 Flange
- 76mm Wheel Compressor
- P Trim .96 A/R Turbine
- 3" V-band Hot Side
- 60mm Vband 12 PSI Wastegate
- Comes with Oil Line Kit

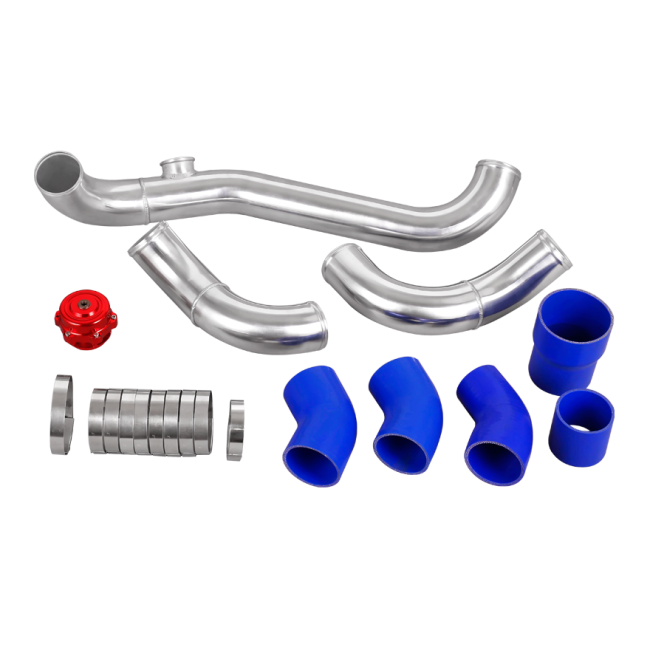

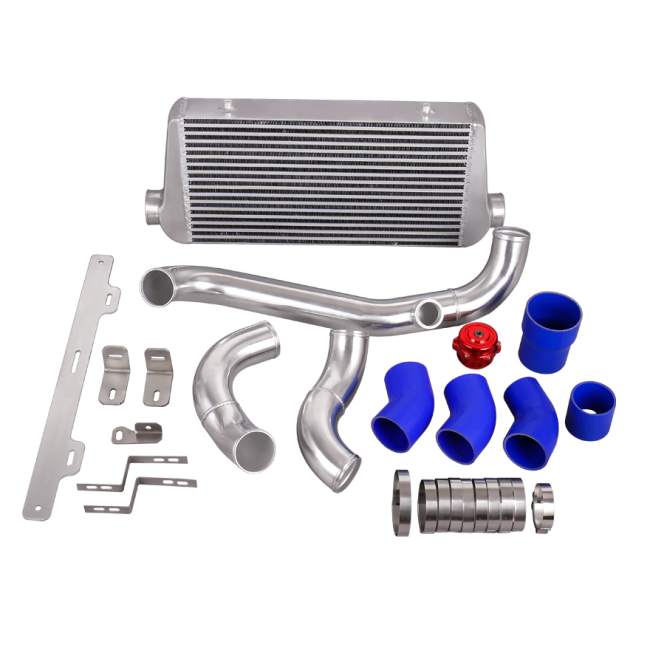

Intercooler Kit:
- Core Size 24"X12"X4"
- Overall Size 31"x12"x4"
- 3" Inlet & Outlet

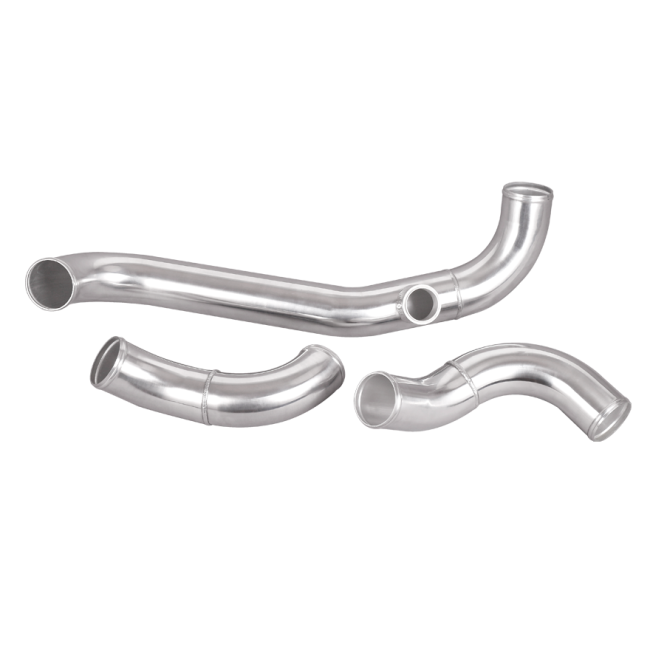

- Mandrel Bent Aluminum Piping Kit
- 3" Mandrel Bent Pipe
- Intercooler Comes with Aluminum Brackets
- 50mm BOV, Silicon Hoses and Clamps

Notes:
- Off Road or Track Use ONLY, NOT for Street Use.
- Due to The Complexity of Turbo Charging a NA Motor, Please Make Sure that You Understand the Application Stated Here are the Right Parts for Your Project.
- Parts Being Sold are The Kit Being Advertised ONLY. Other Parts Shown On Pictures are For Demo Only (of Our Complete Turbo Kit). Check Our Other Website Items.

Optional One Dual Ball Bearing Turbo is Available with Extra Payment, Please Select the Ball Bearing Option When Buying.

　

Click Below Picture to See Flowbench Test of the Intercooler:  　

Highlights:
- Especially Designed, Made for the Application Stated
- Fully Tested, Simple Easy Installation
- Offers Excellent Performance Gains

Items_Included:
- T76 Turbo Charger + 60mm WG + Oil Line kit
- Headers + Cross Pipe+ Downpipe
- Front Mount Intercooler +Brackets + Aluminum Piping Kit
- 50mm Blow Off Valve
- Silicon Hoses and Clamps
- Air Filter
- 3" Vband T4 Elbow Adapter
