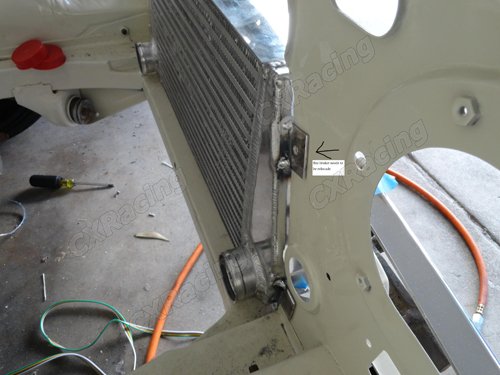

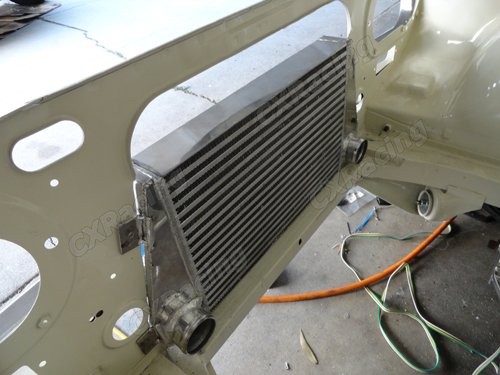

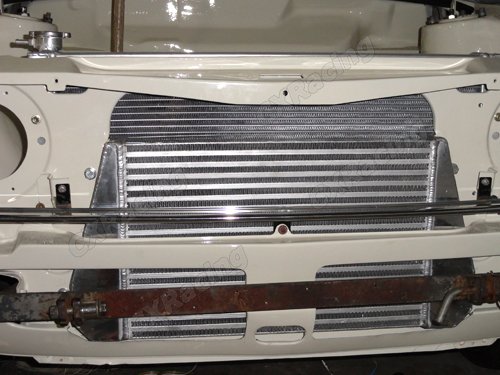

This Intercooler is Specially Designed For 510, its 2.5" Thickness Core Flushes The Frame Perfectly To Give Enough Room For Radiator and Fan, So That It Does Not Getting Too Close To SR or KA Engine Swap. Brackets are Welded At The Best Position Of Mounting The Intercooler.
Product Info and Spec:
Bar & Plate Construction
Core Size: 18"x12"x2.5"
Overall Size: 24"x12"x2.5"
2.5" Thickness Core
2.5" Inlet & Outlet
- Working Pressure: 5~50PSI
- Pressure Drop:2~5psi@35psi; 0.2~0.5psi@15psi
- Hot Air Temperature: 32°F~302°F (0°C~150°C)
- Material: 100% Aluminum, Bar and Plate Design, Polished
- Construction: Machine Cut and Stamped, Hand Welded

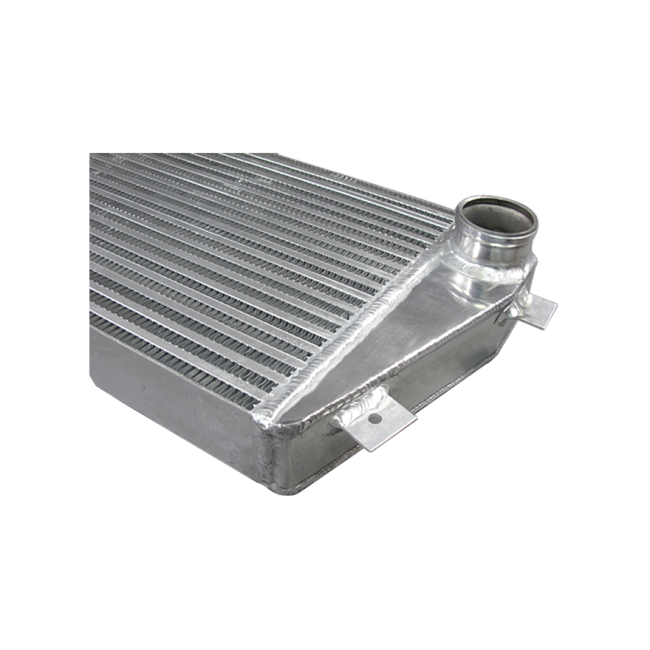

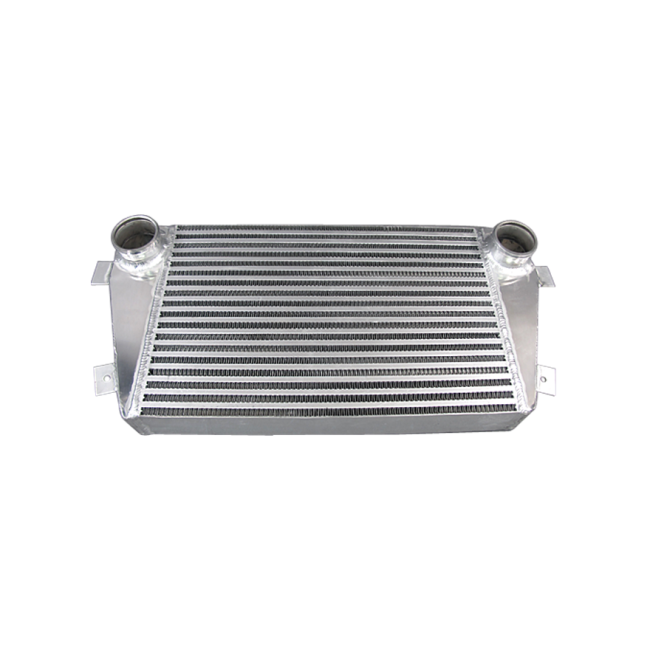

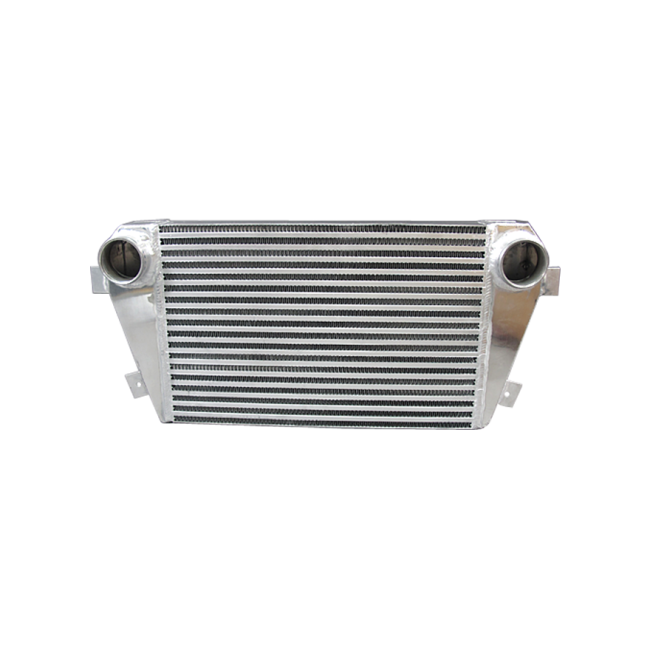

24x12x2.5 Turbo Bar & Plate Intercooler For Datsun 510 or Other Applications
- Brand: CXRacing
- Product Code: IC0047-D5
- Availability: In Stock
