CXRacing Intercooler + Radiator Kit for 2005–2013 Chevrolet Corvette C6

Comes with Intercooler + Radiator + Shroud+ Fans + Mounting Brackets

Turbo Kit, Intercooler Piping Kit, Radiator Piping Kit, and Other Parts Shown on Installed Pictures Are NOT Included. We Offer Them Separately, Check Our Other items.

These Are The Intercooler and Radiator Setup From the Corvette C6 Turbo Kit We Offer. You Can Use Them As the Solution for Your Front End Intercooler and Radiator.

This Kit Replaces Stock Radiator, Eliminates A/C Condenser, Adds Big Front Mount Intercooler, No Cut, Bolt On Fitment. Easy Install and Supports Big Power.

-Bolt On Fitment, Comes with Brackets to Mount Intercooler, Radiator
-Big 4" Core Intercooler
-Comes with New Radiator, Shroud and Fans, Replaces Restrictive Stock Radiator


Note:
1. This Is A Proprietary Design By CXRacing, Part of the Complete Turbo Kit for C6, Offers Intercooler and Radiator Solution for Your C6 Turbo Setup.
2. This Kit Needs to Remove Stock Radiator, Replaces It with Our New Radiator.
3. Can't Keep A/C (Don't Have Room For A/C Condenser).
4. For Automatic Transmission, Need to Add An External Oil Cooler, NOT Included. For Manual Transmission, It Is Highly Recommended to Upgrade the Oil Cooler As Well.

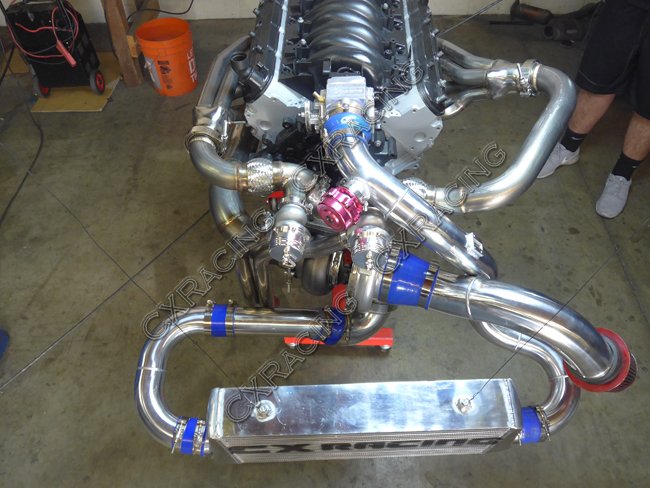

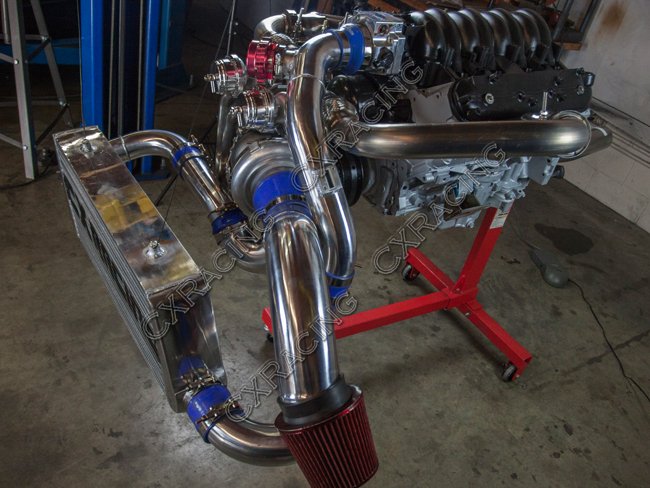

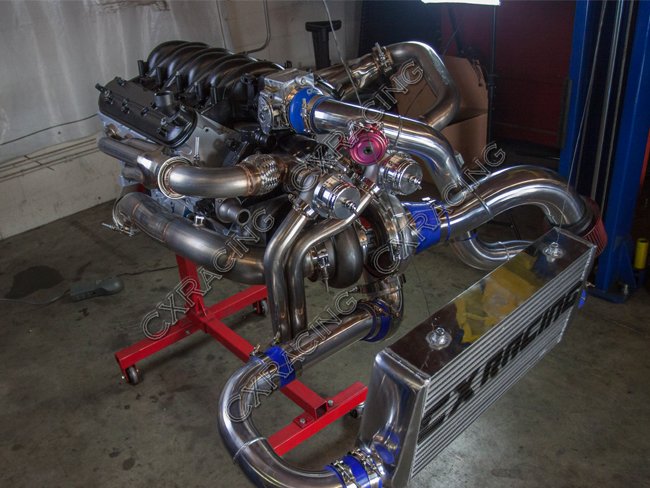

5. There Is NO Installation Guide Provided, However, We Show Many Installed Pictures On Car and On Engine Stand.


Application:
Chassis: 2005–2013 Chevrolet Corvette C6
Engine: LS3

Product Being Sold:
Intercooler + Radiator + Shroud+ Fans + Mounting Brackets

Product Info and Spec:

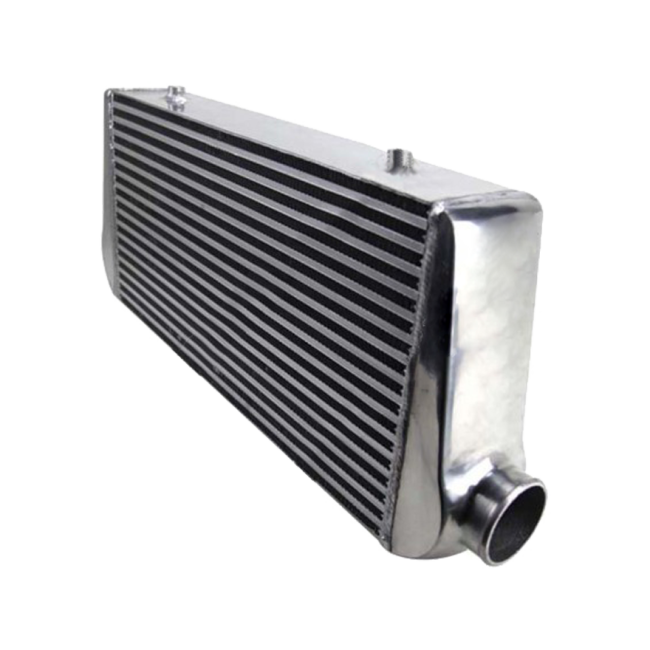

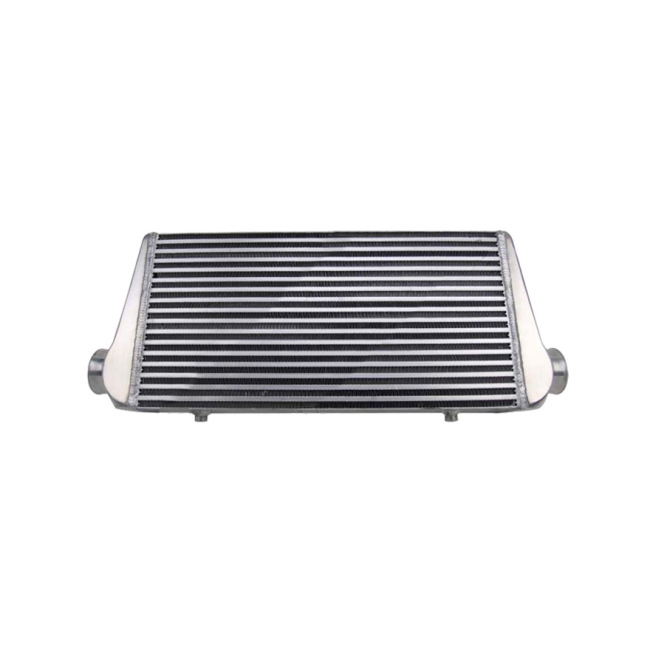

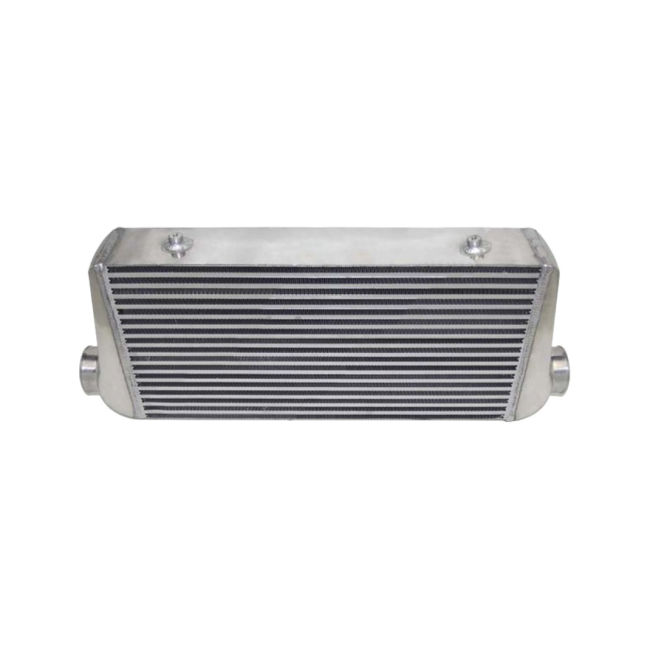

Intercooler :

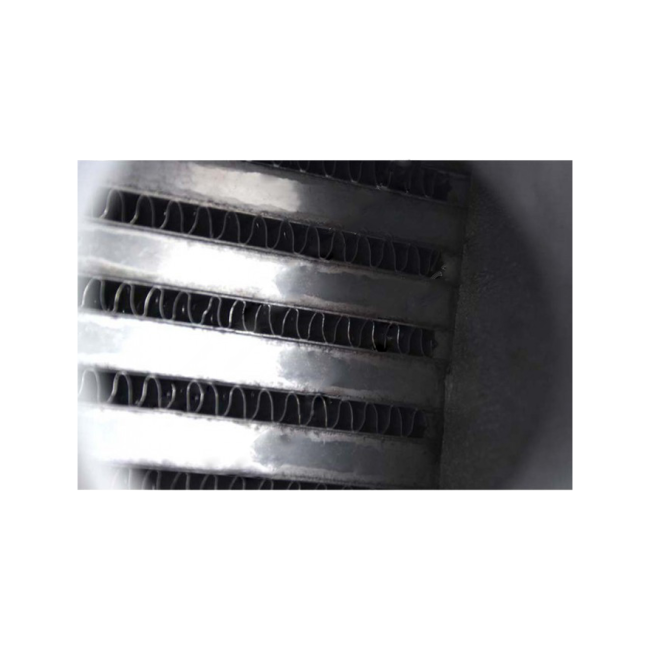

Bar & Plate Construction
Core Size: 24"x12"x4"
Overall Size: 31"x12"x4"
3" Inlet & Outlet

Radiator + Shroud + Fans:
Overall Size:26"x20"x2"
Core Size: 25"x14"x2"
1.25" Inlet & Outlet:1.25"
Rows: 2

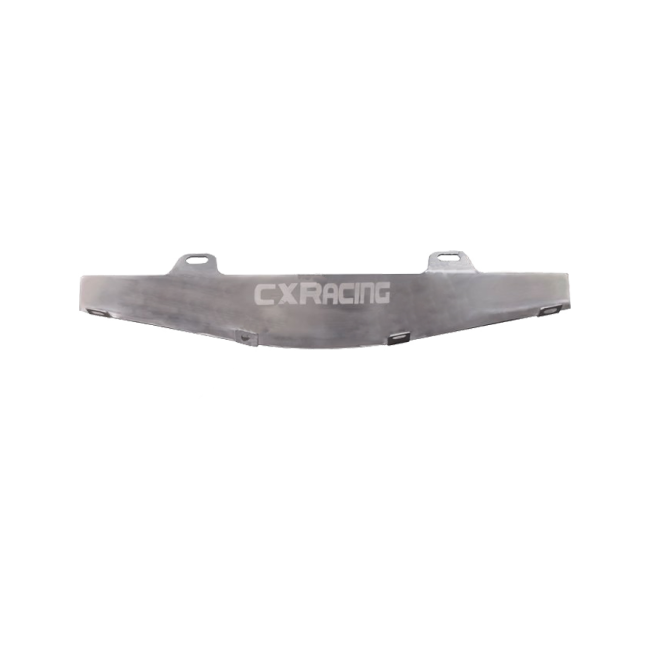

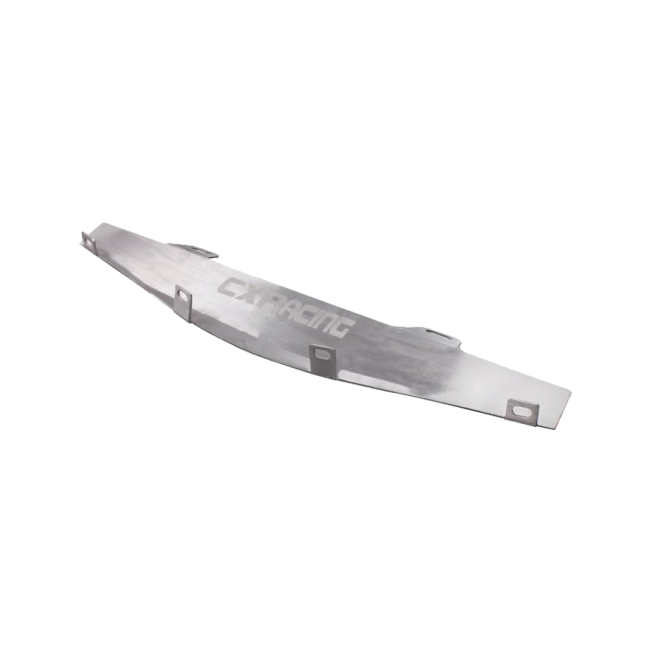

Aluminum Shroud
Two High Performance Slim Electric 12" Fans


Notes:
-
Off Road or Track Use ONLY, NOT for Street Use.
- Due to The Complexity of Swapping a Motor to Different Chassis, Please Make Sure that You Understand the Application Stated Here are the Right Parts for Your Project.
- Parts Being Sold are The Kit Being Advertised ONLY. Other Parts Shown On Pictures are For Demo Only (of Our Complete Swap Kit). Check Our Other items.








Highlights:
-Especially Designed, Made for the Application Stated
-Fully Tested, Simple Easy Installation
-Offers Excellent Performance Gains

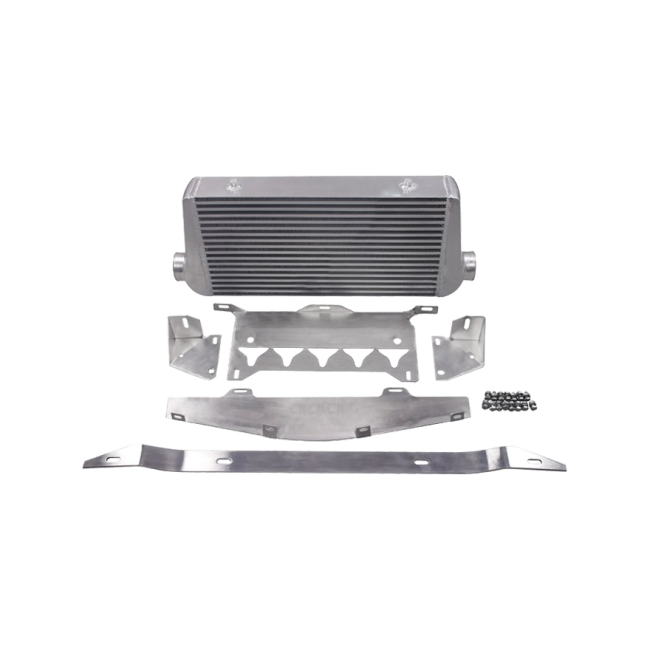

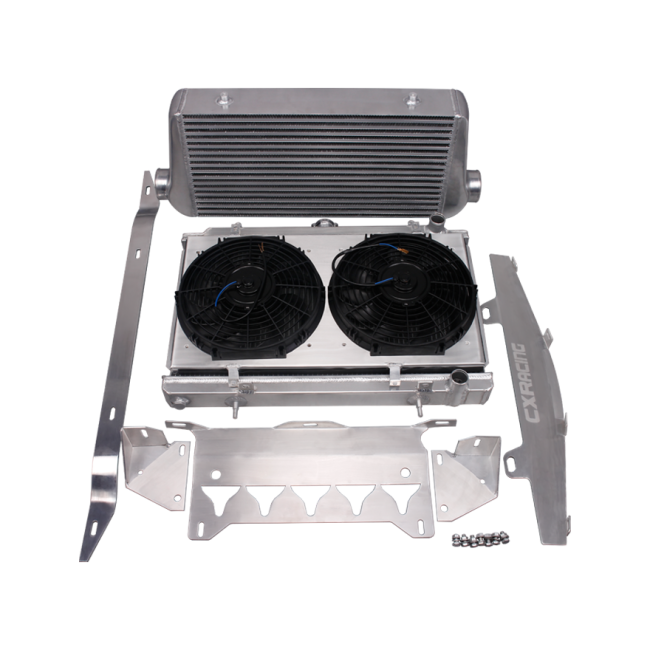

Items Included:
Intercooler
Radiator + Shroud + Fans
Intercooler and Radiator Mounting Brackets

Note: All Other Parts Are NOT Included.

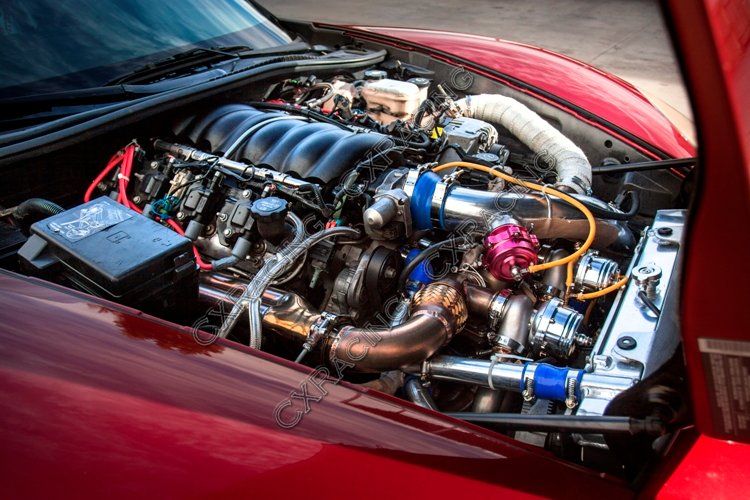

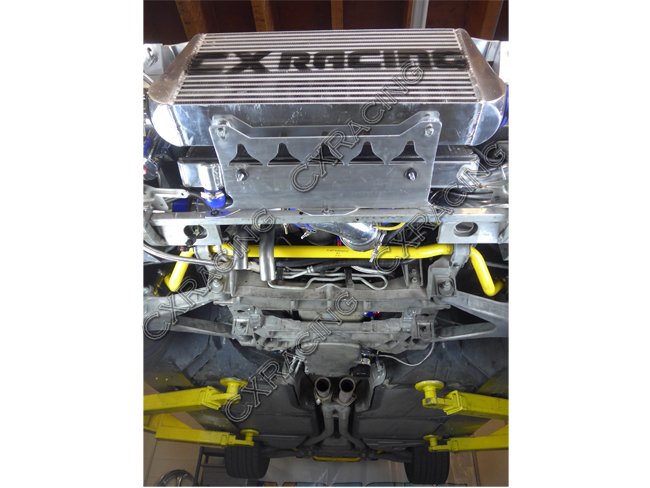

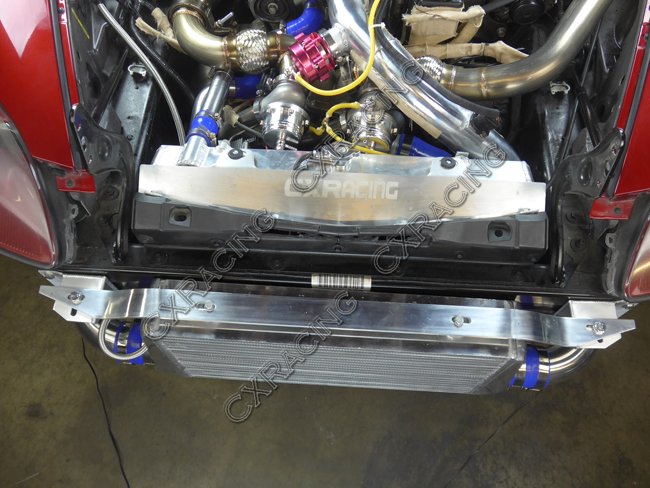

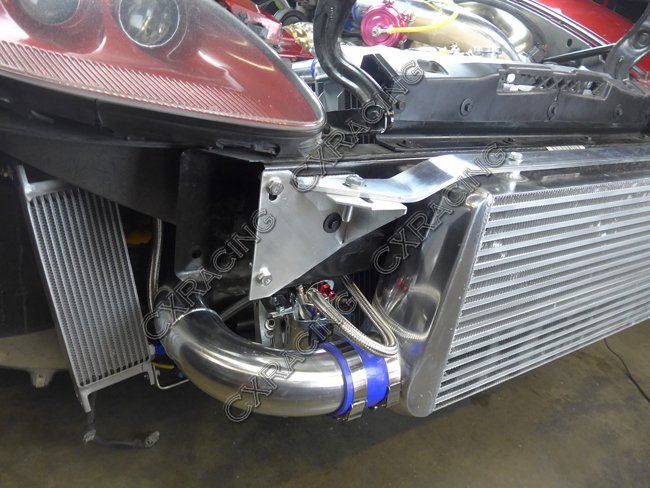

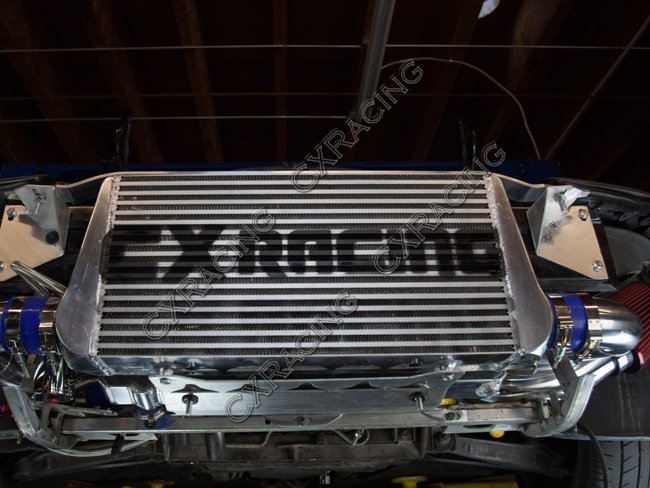

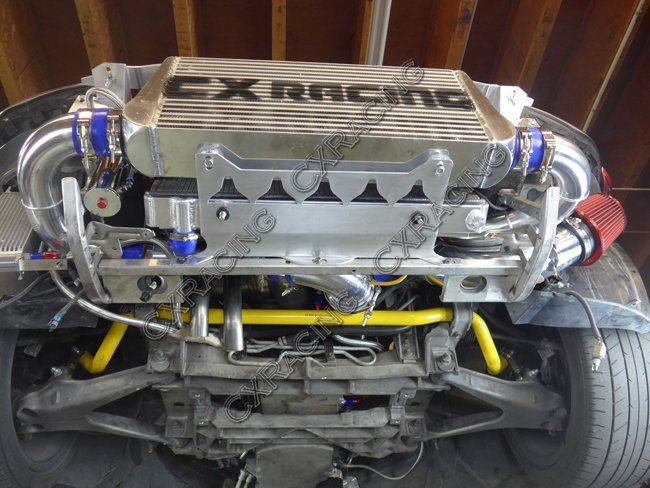

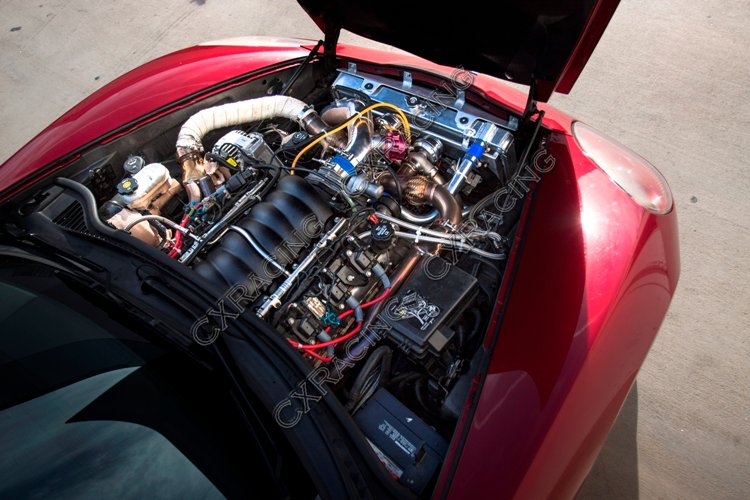

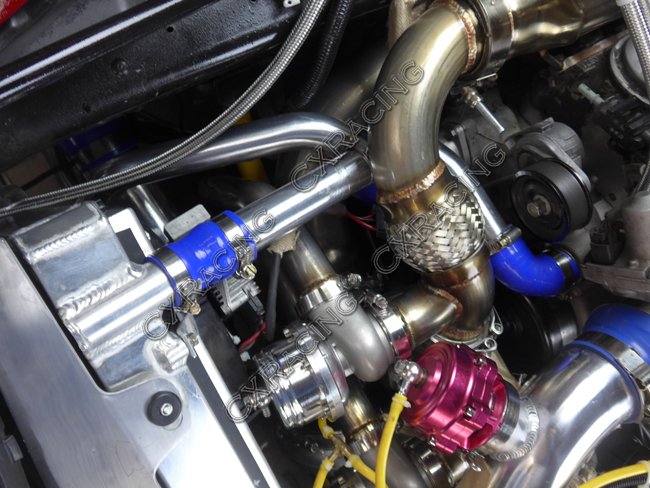

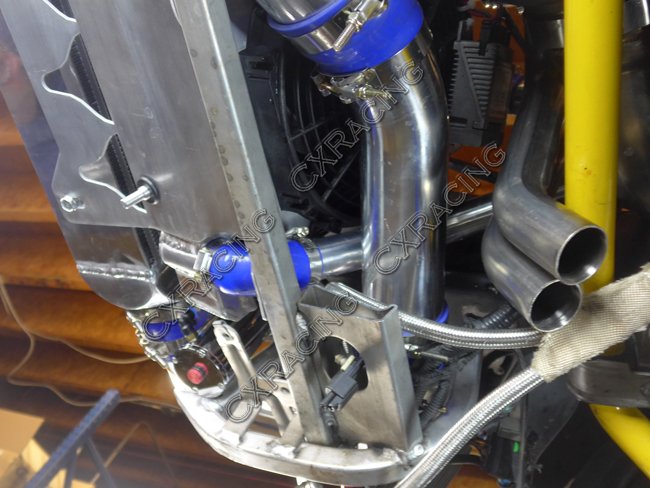

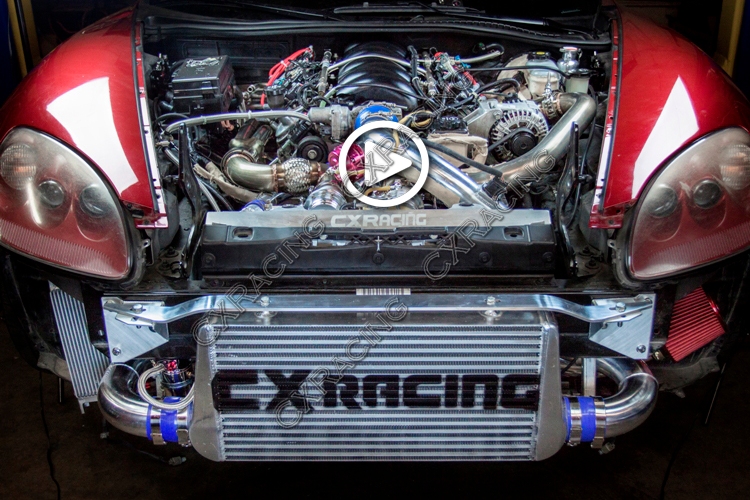

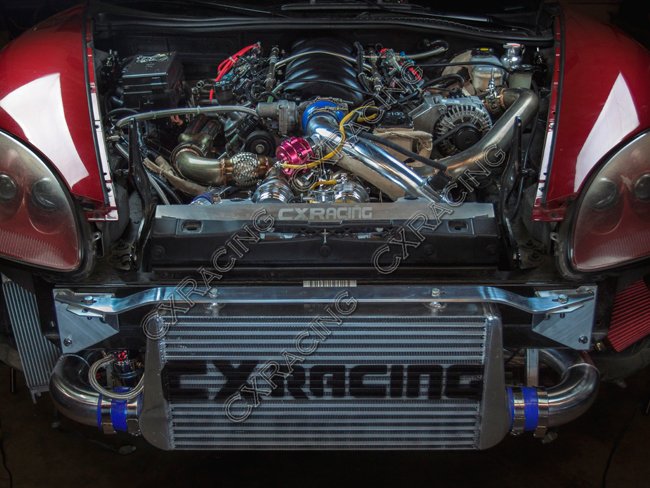

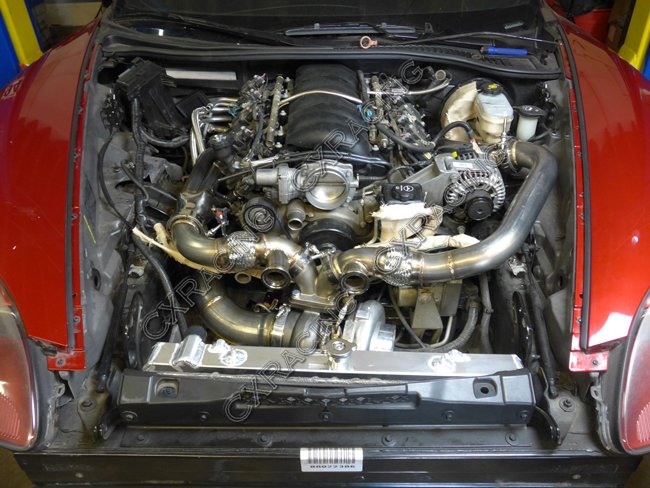

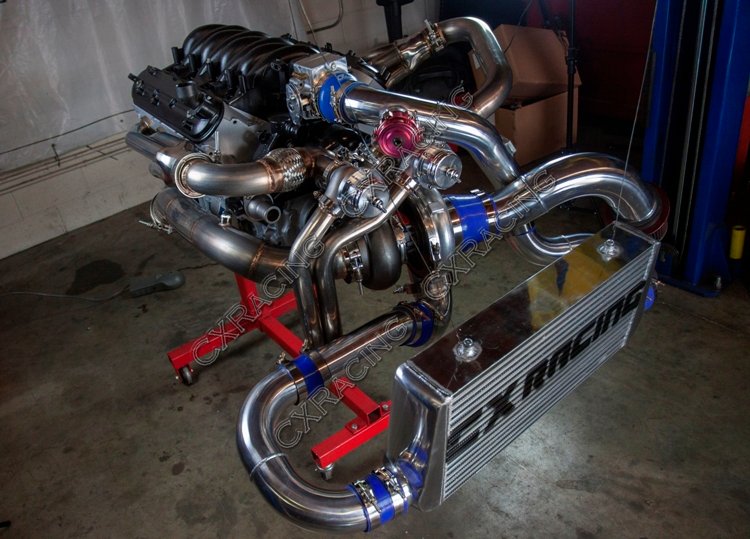

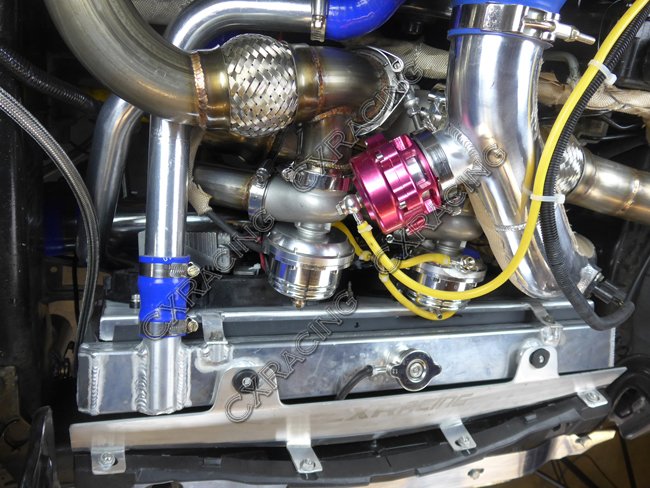

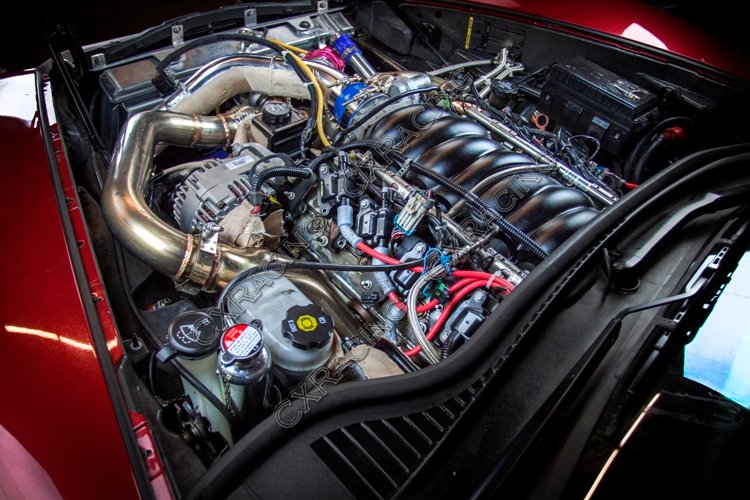

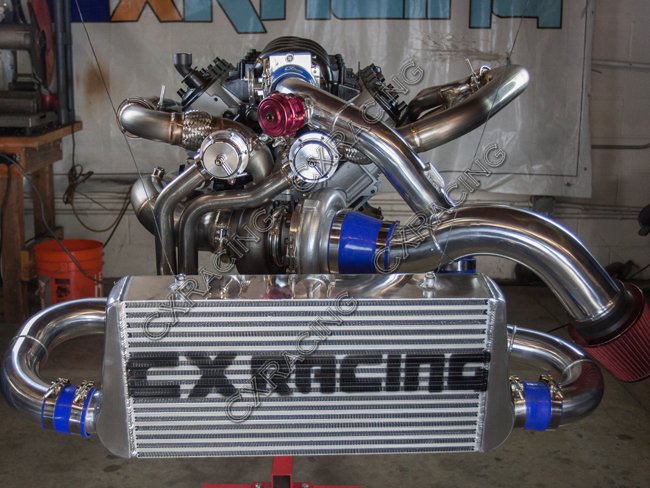

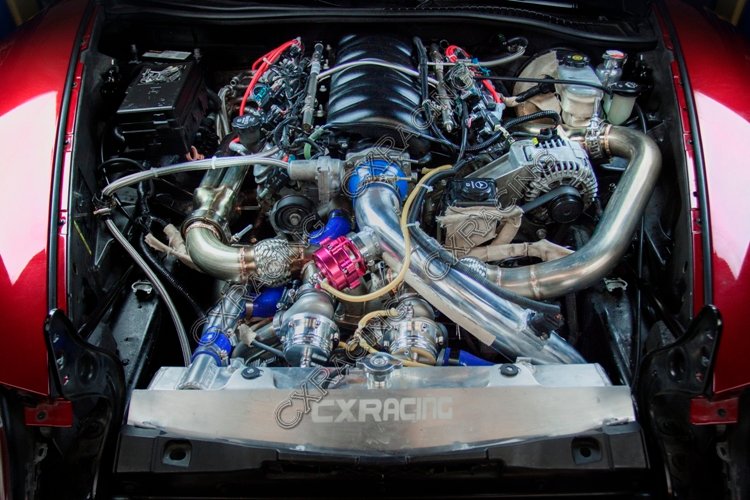

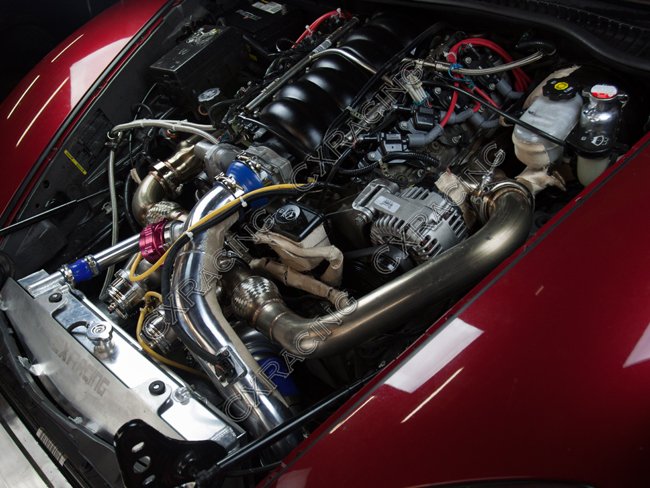

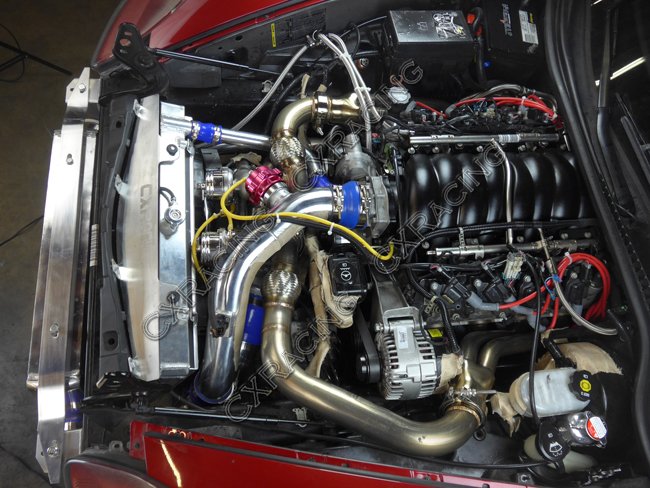

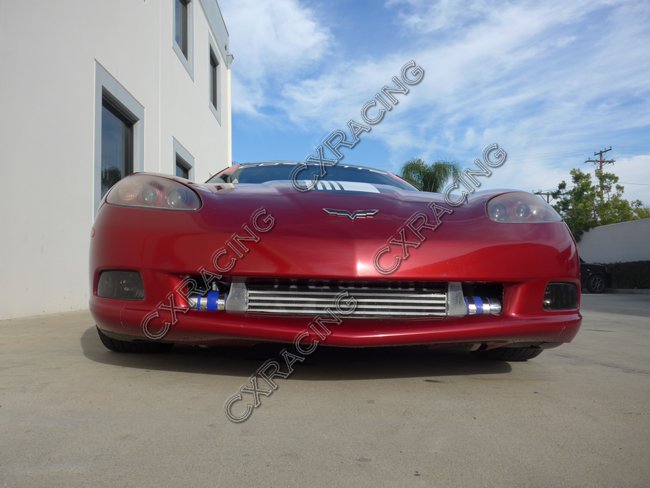

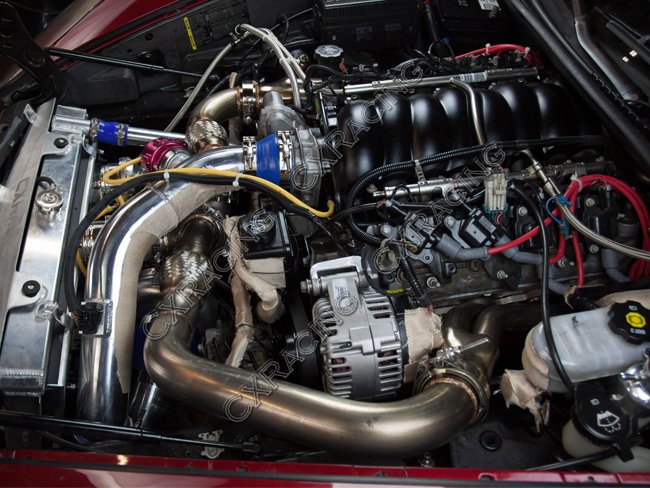

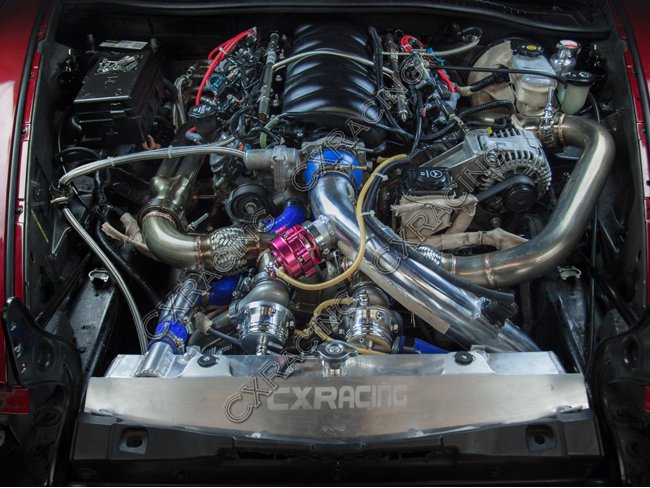

Below Are Installation Pictures:

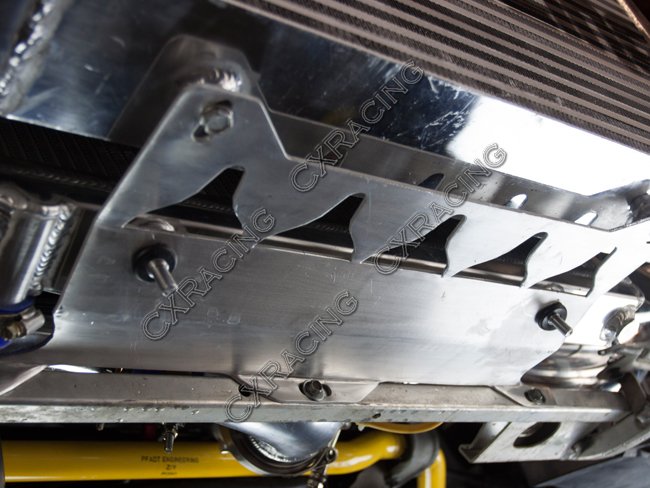

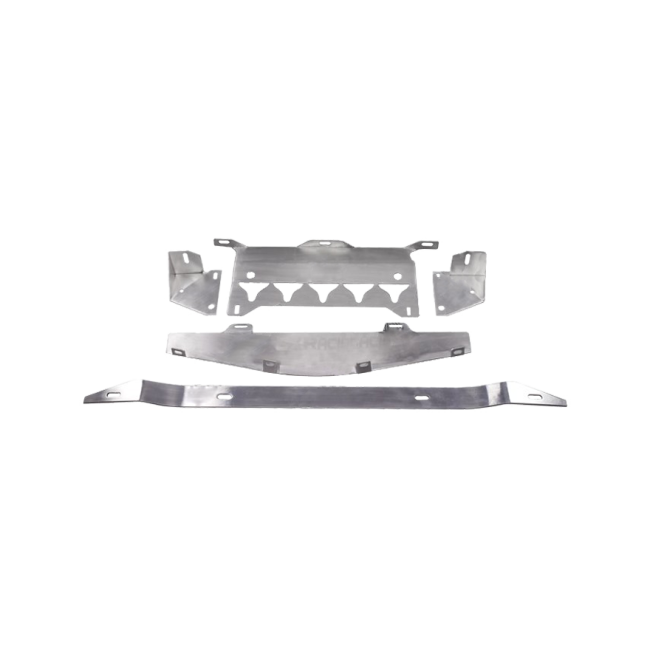

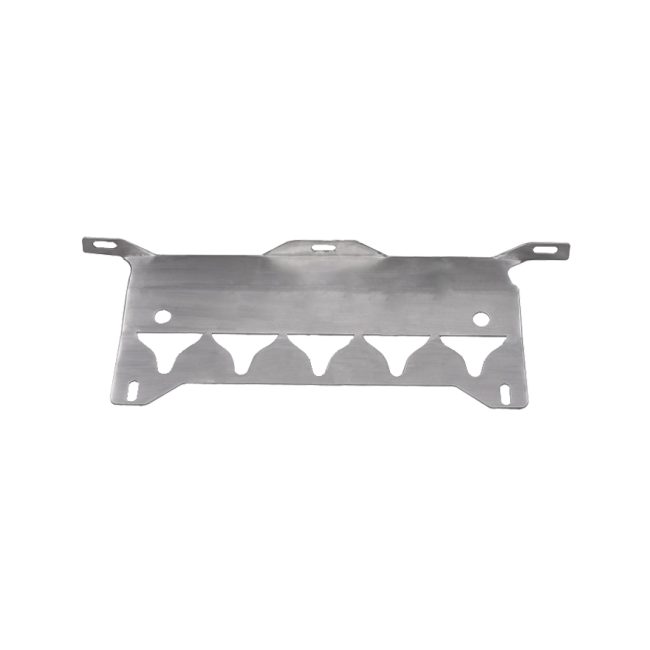

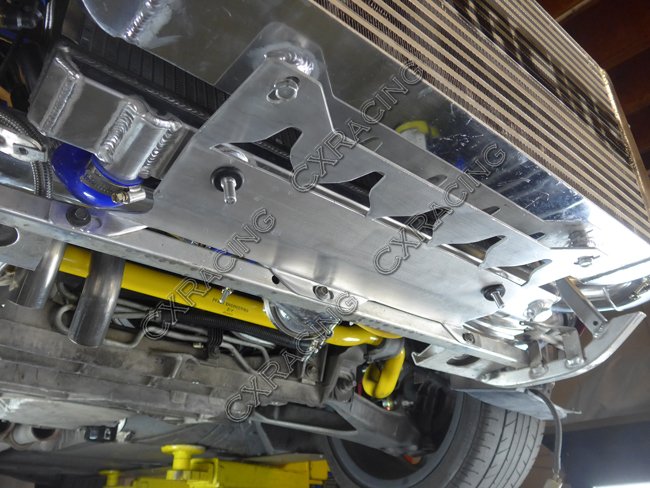

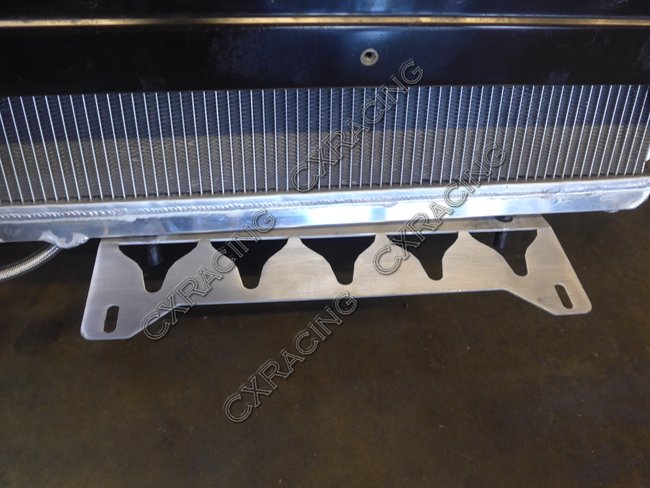

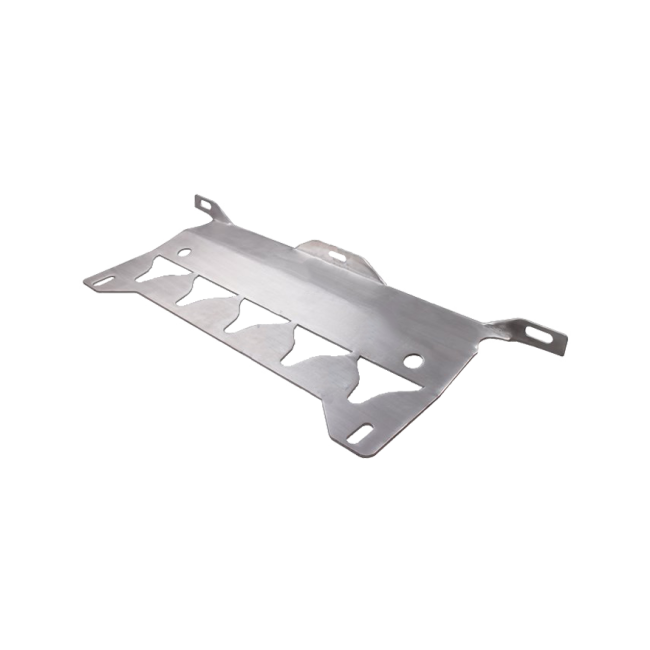

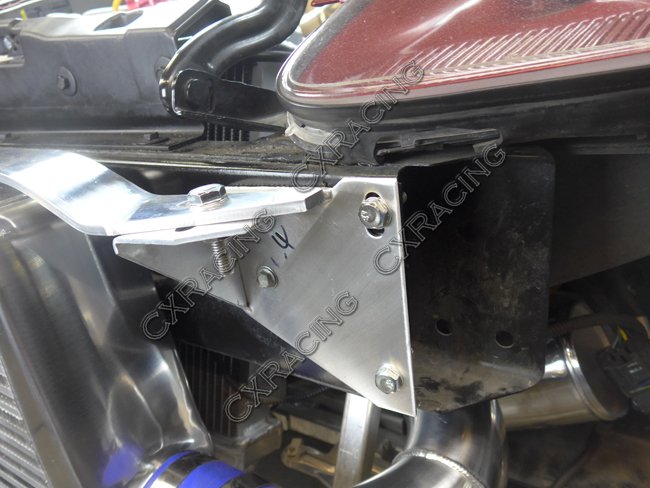

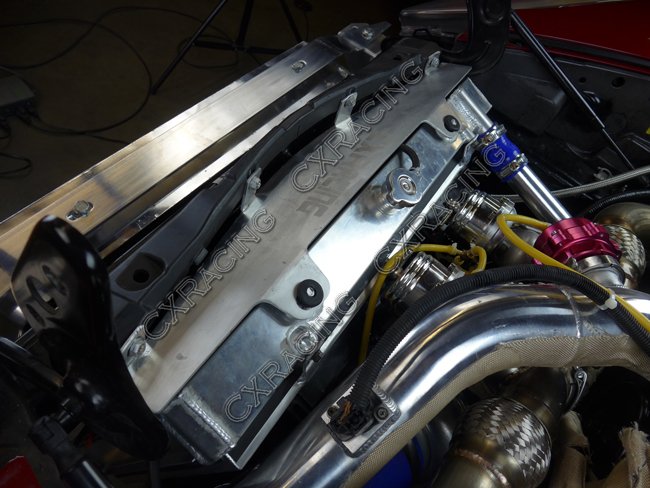

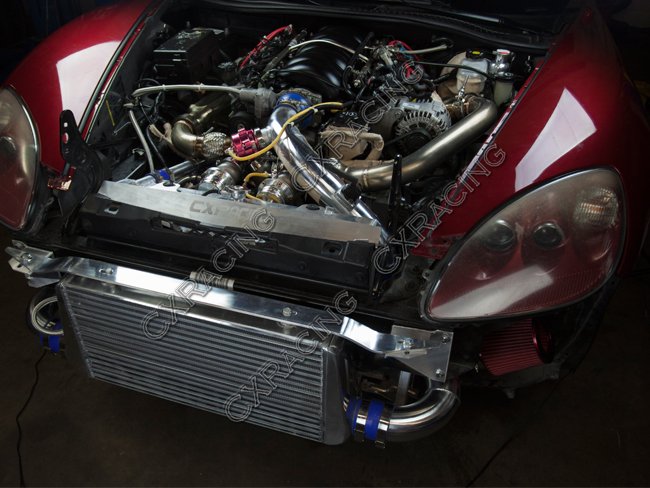

Below Pictures Show Intercooler and Radiator Mounting Brackets (Do NOT Flip It, Otherwise It Does NOT Work)


Below Picture Shows Where The Bumper Need to Be Trimmed
